Description
BRT SG04 DIN Rail signal generator is a 4-channel adjustable 0-30mA 0-12V signal source generator simulator. It can simulate 0-20mA 4-20mA signal, 0-5V 0-10V voltage signal used for PLC, valves, sensors, etc. signal debugging and simulation. It has 5V voltage power supply output terminals and provides 5V power supply for the testing equipment. 12-24V wide range power supply, 35mm DIN Rail-mounted shell, ideal to use in the industrial sites or in the lab.
Main Features
•Adjustable 4-channel 0-25mA 0-12V signal source output.
•Basic accuracy is better than 0.75%.
•Have 5V 200mA power supply output terminals.
•Wide range 12-24VDC power supply.
•Output adjusting step or changing step is 0.1mA.
•Using precision encoder to adjust output, the output is stable and smooth.
•Display output signal in the LED accurately.
•Simplified circuit design, no ripple, stable pure 4-20mA current output.
•LED display luminance can be adjusted by user.
•Standard 35mm DIN Rail-mounting shell, easy to install.
Typical Applications
•Used as 0-20mA 4-20mA 0-24mA constant current source signal simulator.
•Valve adjustment, frequency inverter signal controlling.
•PLC calibration, meters and LED testing.
•Analog transmitter 4-20mA signal output simulation.
•Analog 0-10V 4-20mA DIN Rail signal generator required in industrial site or labs.
General Specifications
| Output current signal: | 4-channel 0-25mA, max. 0-30mA |
| Output voltage signal: | 4-channel 0-10V, max. 0-12V |
| Accuracy: | better than 0.75% TYP ±0.04mA/V |
| Output power source: | 1-channal 5VDC, max. 200mA |
| Output adjustment: | Adjust through encoders’ button |
| Power supply: | 12-24VDC |
| Display resolution: | Current signal output:0.0-30.0; Voltage signal output: 0.0-12.0 |
| LED size: | 0.28inch, LED screen: 22.5 x 10mm |
| Display luminance: | Adjustable through resistance button |
| Installation: | Standard 35mm DIN Rail-mounting |
| Operating temp.: | -20 – +45℃, no condensation |
| Storage temp.: | -20 – +65℃, no condensation |
| Humidity: | 85 R.H. Non condensation |

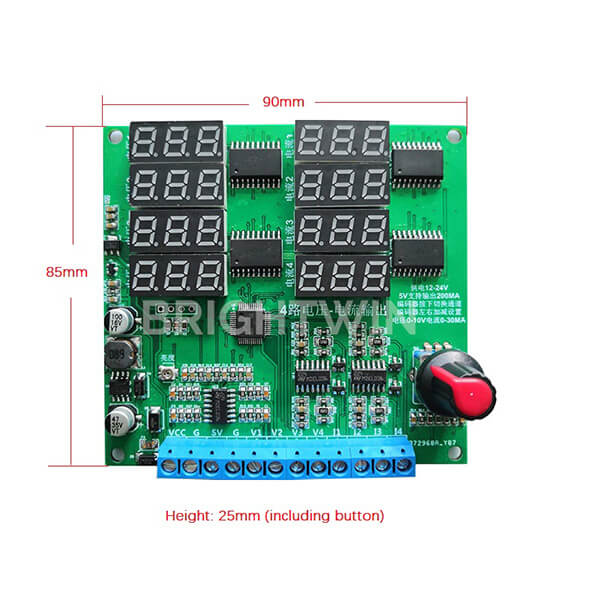

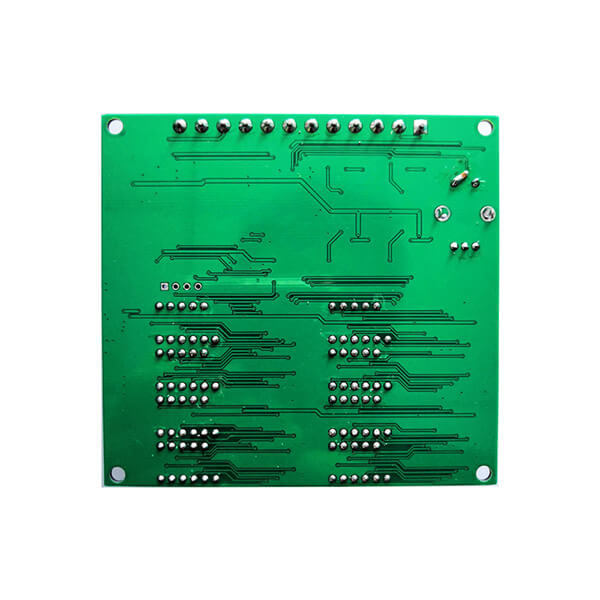

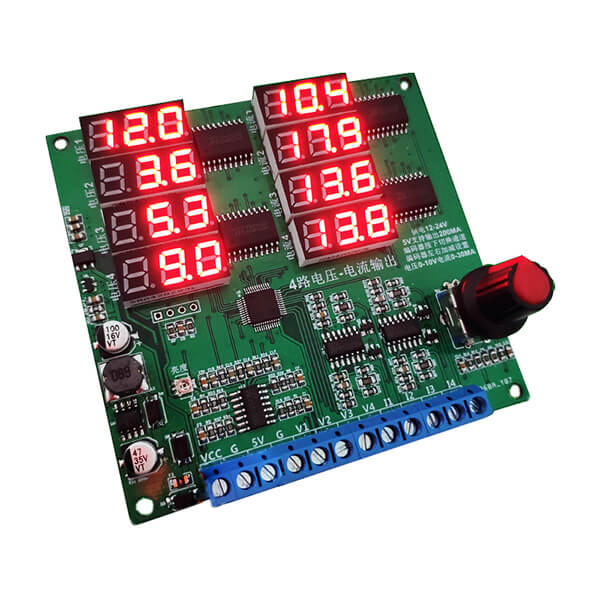

| PCB size: | L x W x H: 90 x 85 x 25mm (including button height) |

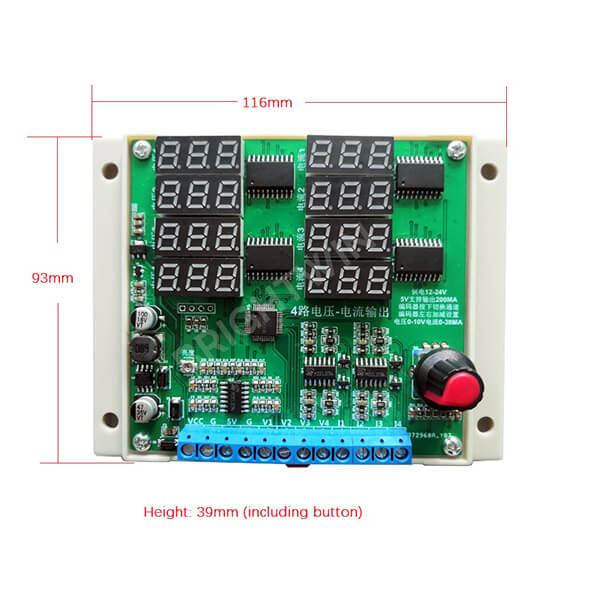

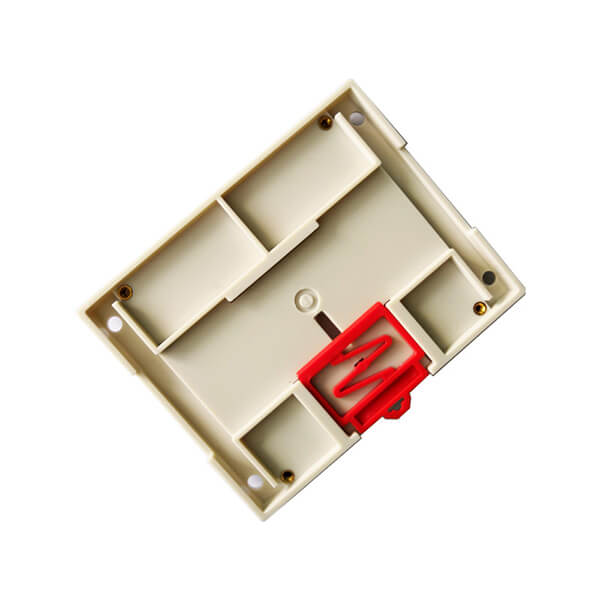

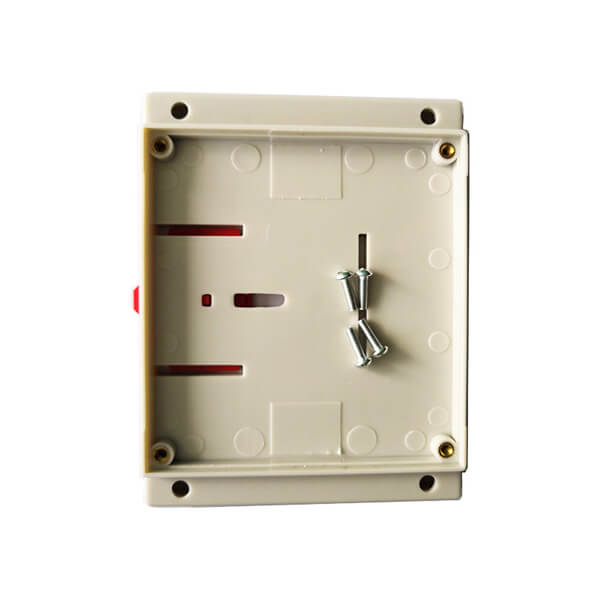

| DIN Rail size: | L x W x H: 116 x 93 x 39mm (including button height) |
DIN Rail Current Voltage Signal Generator Operations
Adjust signal output: rotate the encoder button in clockwise direction or counter-clockwise direction, the signal output value increased or decreased accordingly.
Signal output channel setting selection: press down the button, user can change the signal channel alternative; quickly short press down twice continuously, can change the signal output channel into upper channel quickly. When the last dot in the screen is flashing, it indicates this signal channel is adjustable through rotating encoders’ knob.
LED luminance adjustment: rotate this resistance button user can adjust LED display brightness.
* If output is higher than 10.5V, the LED display value is higher than 10.5 and up to 12.0, but actual output voltage signal is 10.5V.
