Description

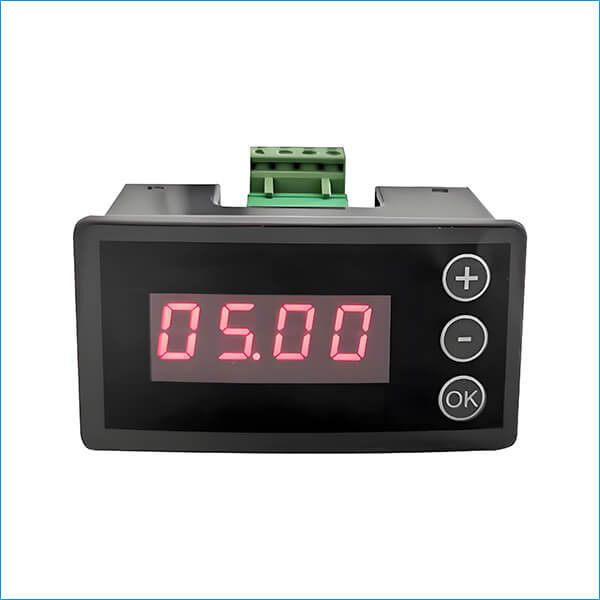

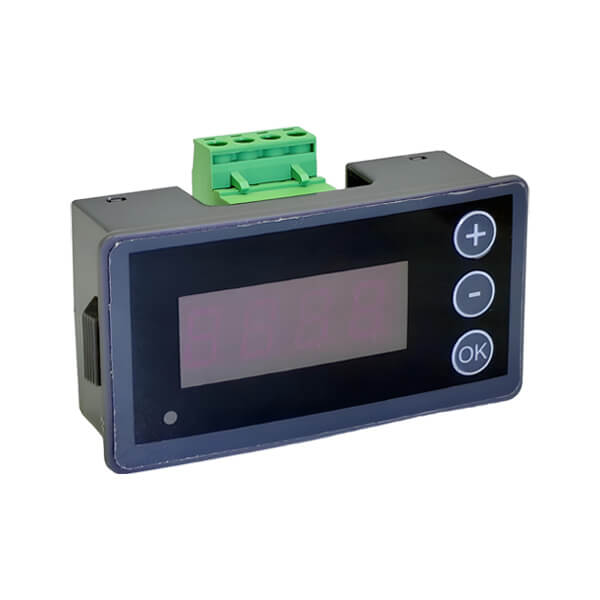

BRT 510SG1 Analog adjustable voltage generator is a standard panel-mounting voltage source signal generator with three pressing buttons. It can simulate transmitter or sensor signal output and do signal debugging or simulation for process controlling system. It has polarity reverse protection circuit, short-circuit protection circuit to avoid the accidental damages to the voltage generator. With 0.1% accuracy, 0.01V display resolution, 15-28V wide range power supply, it provides a simple solution for the user to do signal debugging and further integration.
Main Benefits
• Better than 0.1% accuracy grade, support user’s accuracy calibration.
• Using long life span pressing buttons, user can use pressing button to set it.
• Have two types of adjusting mode: rough adjustment and fine adjustment.
• Programmable output, output range can be set into 0-3.3V, 0-5V, 2-10V, 0-10V.
• LED display is settable among current signal value display, 0-100.0 percentage display, etc.
• Min. Changing step can be 0.01V.
• 4 digits 0.4-inch clear LED display, standard panel-mounted package.

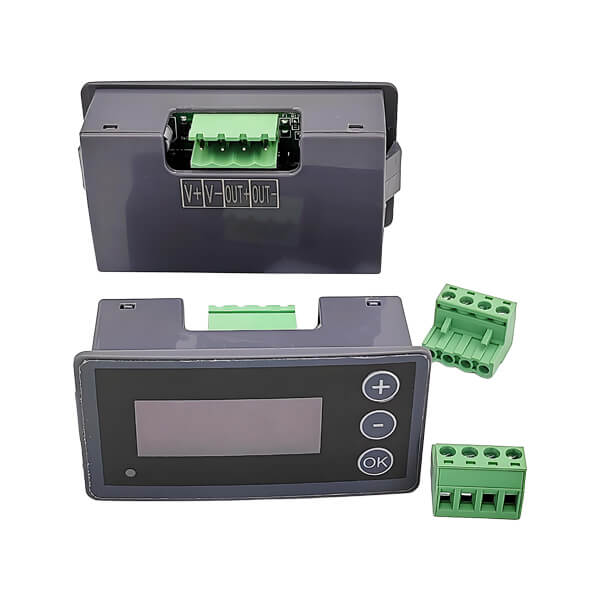

• 4 Pin plugable wiring terminal block, easy to do wire connection.
• Output has short-circuited protection functions.
• Have polarity reverse connection protection circuit in power supply terminals.
• Digital encoder used, long durability, strong anti-interference capability.
Typical Applications
• Use it as a constant 0-5V 0-10V signal source generator simulator.
• Valve adjustment, frequency converter VFD control.
• PLC, DCS, meters & instruments adjustment.
• Transmitters, sensors signal simulation.
• Adjustable voltage signal controllers.
Technical Parameters
| Output | 0-10VDC default. 0-3.3V, 0-5V, 2-10V switchable |
| Display | 0.00-10.00 or 0.00-50.0, 1.0-100 switchable display mode |
| Output adjustment | Pressing buttons, have fine/rough adjusting mode |
| LED display resolution | 0.01V |
| Typical Accuracy | better than 0.1%, can be calibrated by the user |
| Power supply | 24VDC recommended, max. 15-28VDC |
| Power consumption | ＜1.5W |
| Power supply protection | Polarity reverse connection protection |
| Output load capacity | Max. 20mA |
| Output protection | Polarity reverse connection, short circuit protection, over-voltage protection |
| External shell dimension | Standard 5135 panel meter head, 80 x 42 x 40mm (L x W x H) |
| Panel Cut-out size | 76 x 40mm |
| Operating temperature | 0-55℃ |
Typical Wiring Circuit
Parameters Setting Code
Download User Manual
BRT 510SG1 Adjustable 0-3.3V 0-5V 0-10V Voltage Signal Generator with Pressing Button User Manual
