Description

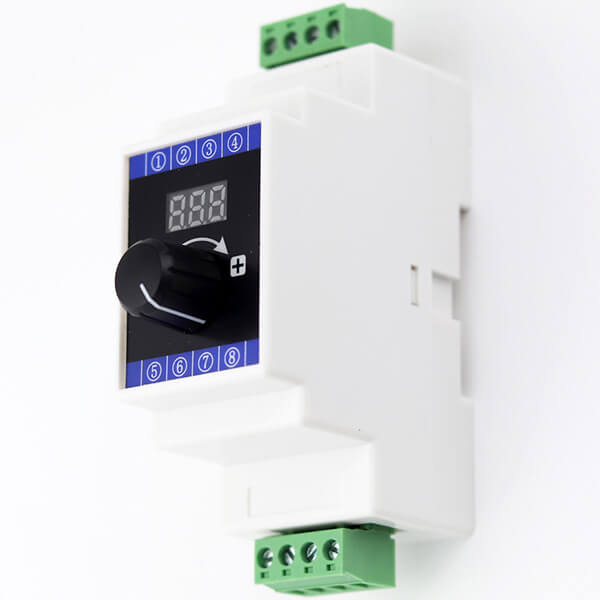

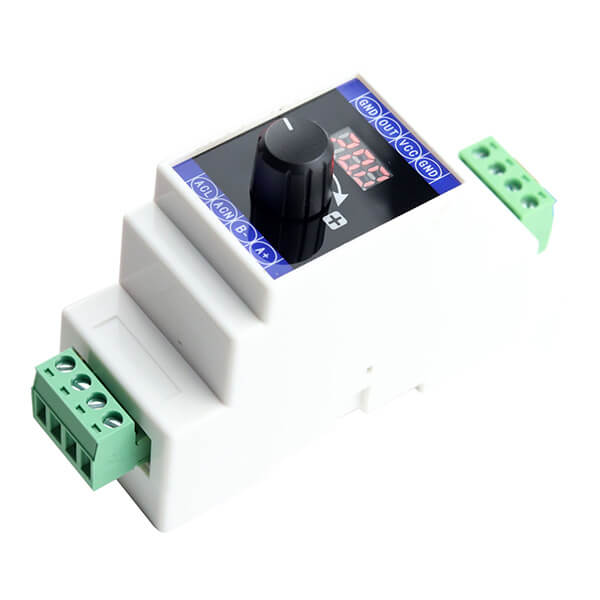

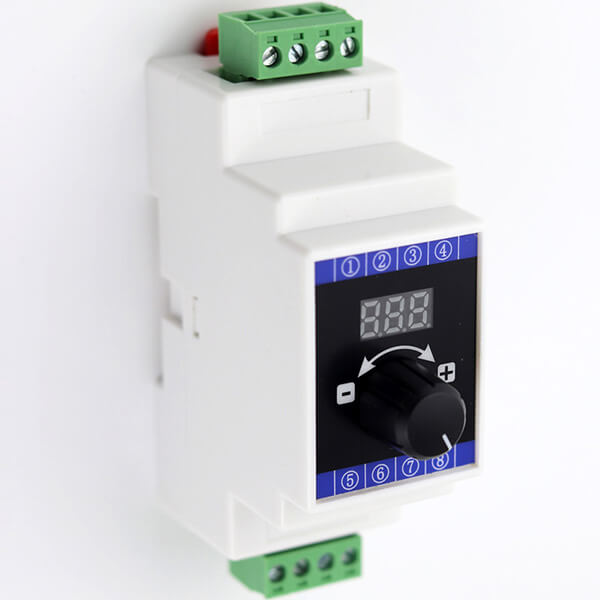

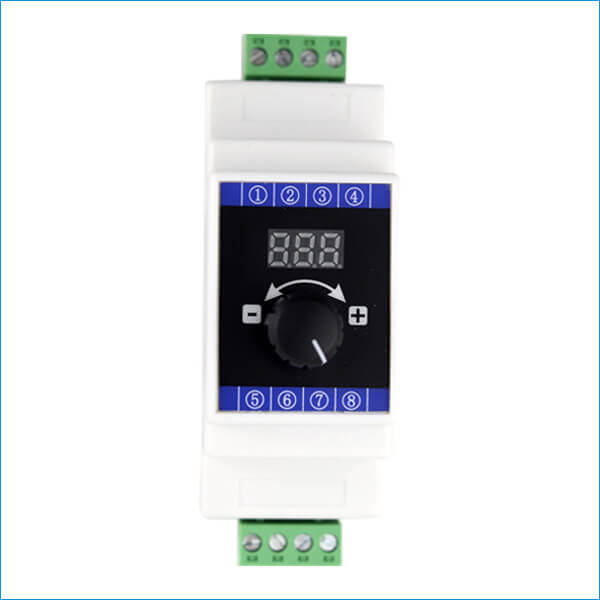

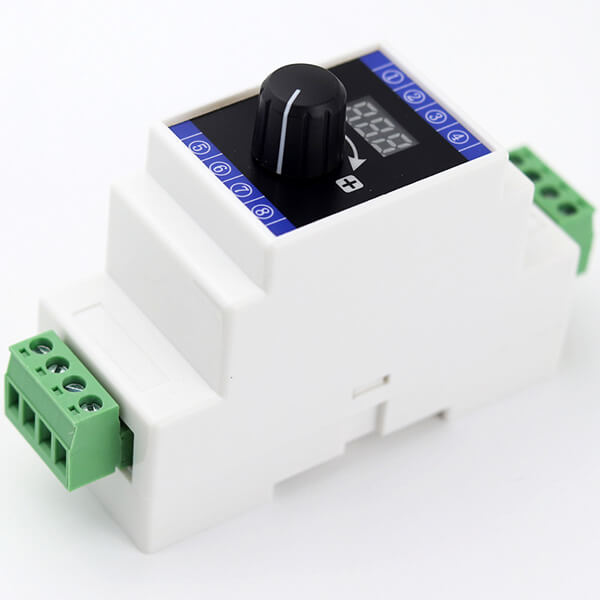

BRT 510SG-D2 DIN Rail-mounted dc voltage signal generator is an analog simulation device which can simulate 0-2.5V 0-3.3V 0-5V 0-10V voltage signal. Its max. output range is 0-12V, output accuracy is better than 0.5%, and output accuracy can be calibrated by the user, voltage output error is lower than 0.05V. It is a simple analog dc voltage controller for developers to do signal calibration and controlling on PLC, DCS, Valve, frequency converters, etc. With 3 digits LED display, 35mm DIN rail-mounted case makes it become an idea voltage signal simulator or generator debugging device in industrial site.
Main Parameters
| Voltage simulation output: | 0-1V, 0-2.5V, 0-3.3V, 0-5V, 0-10V, max. 0-12V |
| Output load capacity | <20mA |
| Display digit: | 0.0-10.0 (V) default. can be 0.0-100 (%), 0.0-50.0 (Hz) switchable through the button |
| Power supply: | 24VDC , max. 12-28VDC. (*If 85-264VAC power supply required, please notify us.) |
| Power consumption | ＜2Watt |
| RS485 communication: | Optional Modbus RS485 functions |

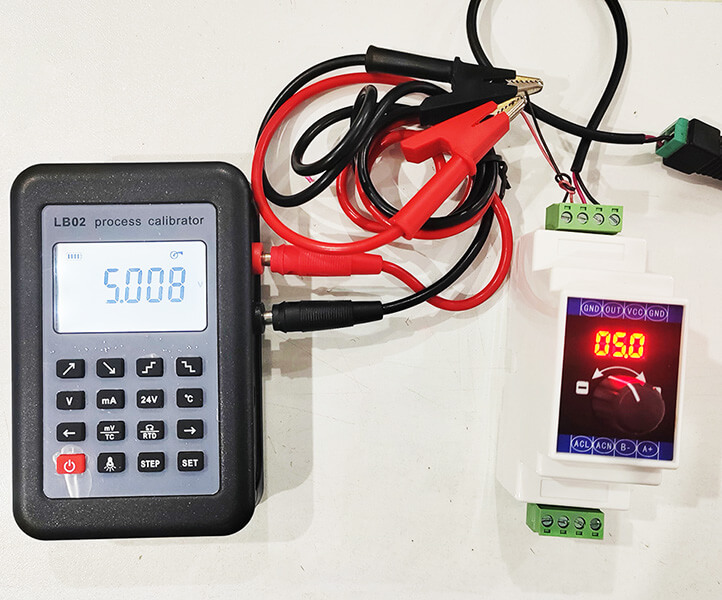

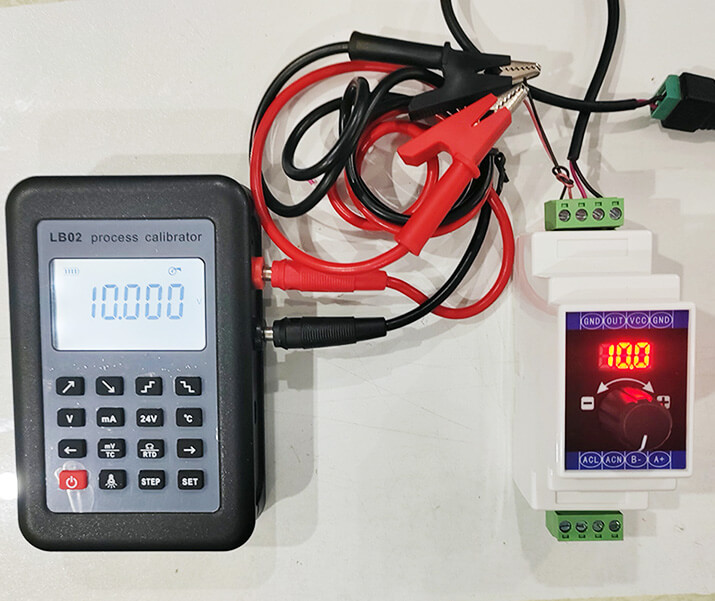

| Output accuracy: | error is lower than 0.05V |
| Display type: | Red 3-digit LED tube display |
| Installation: | Standard 35mm DIN rail-mounted. |
| Operating temperature range: | -10–+60℃ |
| Storage temperature range: | -40–+85℃, <80% Humidity. |
| Dimension (L x W x H): | 87.5 x 36.5 x 58.7mm (knob height: 20mm) |
Typical Applications
•Analog 0-1V, 0-2.5V, 0-3.3V, 0-5V, 0-10V voltage signal simulation.
•Meters, PLC, DCS signal debugging applications.
•Valve, frequency converter signal adjustment.
•Thermocouple signal testing and calibration.
•DIN Rail-mounted 0-5V, 0-10V signal source controllers.
Buttons Functions
• Rotate once in clockwise: output signal increases 0.1V or 1V, can be set by the user.
• Rotate once in anti-clockwise: output signal subtracts 0.1V or 1V, can be set by the user.
DIN Rail-mounted Signal Generator Wiring
Dimension
