Electronic Scale AD Converter Module with RS485 Port

Original price was: $27.90.Current price is: $24.95.

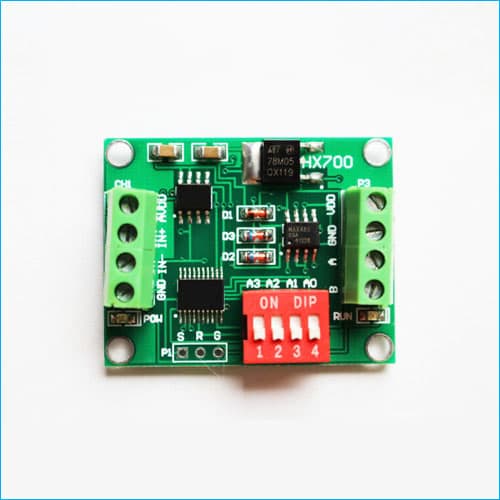

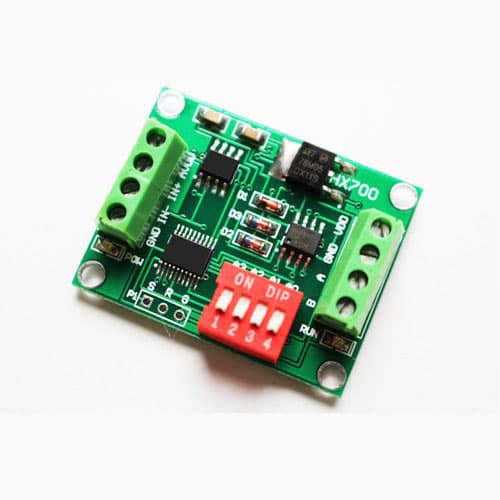

BRT HX700 Electronic scale signal AD conversion module is a 24 bit +/20mV differential signal input, RS485 digital output analog to digital converter module. Its communication protocol is HEX code, two’s complement, and address can be set through DIP switch. This electronic scale signal AD module supports zero calibration, weight calibration, ADC ready through configuration software. With 9-12V operating power supply, wring terminals, it is an ideal precision weighing sensor signal conversion module for developers or users.

SKU: BRT HX700 Category:

Description

BRT HX700 Electronic scale AD converter module is a low-cost reliable full-bridge load cell signal AD conversion integrated circuit board module. It accepts +/-20mV differential signal input and output digital RS485 signal. It supports data communication with upper PC through RS485 port, and address can be set through DIP switch. That load cell signal converter module can be connected to max. 16 sets of devices at the same time. It is widely used in full-bridge electronic scale, load cell sensor signal conversion and data acquisition.

Main Features
● 24-bit high accuracy AD conversion, high reliable and accuracy.
● ±20mV differential signal input.
● 9-12V wide range power supply, low power consumption.
● Weight unit display: mg, g, kg, T.
● Address is settable through DIP switch.
● HEX code data communication protocol.
● Simple high efficiency reliable design, high sensitivity, fast response.
● Ideal to do further development and integration.

Typical Applications
● Electronic scale sensor signal AD conversion.
● Weighing sensor signal data acquisition and transmission.
● Force, pressure, displacement, torque signal data conversion.
● Weighing sensor signal data monitoring.

Technical Parameters

TermsTYP Value
Input±20mV differential signal input, full-bridge load cell signal input
Data Accuracy24 bit
Refresh Frequency80Hz refresh data
Excitation voltage5VDC
Operating voltage9-12VDC
Operating current<10mA
Communication ProtocolHEX Code, two’s complement
Data Format9600bps baud rate, no checksum, 8 bit data, 1 stop bit

Terminals Definition

Terminal Code NoDescription
P2 Terminal block
12V9-12V operating power supply +
GND9-12V operating power supply –
ARS485 non-inverting interface, connect to RS485 A
BRS485 inverting interface, connect to RS485 B
CH1 Terminal block
VDDElectronic scale power supply 5V+ (usually red wire)
I+Electronic scale non-inverting input (usually green wire)
I-Electronic scale inverting input (usually white wire)
GNDElectronic scale power supply – (usually black wire)

* Do ensure right polarity connection, then power on; otherwise, it may cause permanent damage to the module.

DIP Switch Address

 Device ADD.DIP Switch
No.IntegerHEXA3A2A1A0
1160A0OFFOFFOFFOFF
2161A1OFFOFFOFFON
3162A2OFFOFFONOFF
4163A3OFFOFFONON
5164A4OFFONOFFOFF
6165A5OFFONOFFON
7166A6OFFONONOFF
8167A7OFFONONON
9168A8ONOFFOFFOFF
10169A9ONOFFOFFON
11170AAONOFFONOFF
12171ABONOFFONON
13172ACONONOFFOFF
14173ADONONOFFON
15174AEONONONOFF
16175AFONONONON

Electronic Scale AD Converter Config. Software (English version)

Electronic scale module software
Electronic scale module software

Download User Manual:

BRT HX700 Electronic Scale AD Converter Module RS485 Port User Manual

Additional information

Weight0.15 kg
Dimensions10 × 5 × 10 cm
Input

±20mV differential signal input, full scale ±40mV. Compatible with full bridge weight sensor/load cell.

Output

RS485 digital output

Power Supply

9-12VDC wide range

Accuracy

24 bit ADC

Packing List

1 Unit x Original New Electronic Scale AD Converter Module with RS485 Port
1 Set x Electronic Scale Configuration Software (English version)
1 Set x Professional User Manual (English version)
