Description

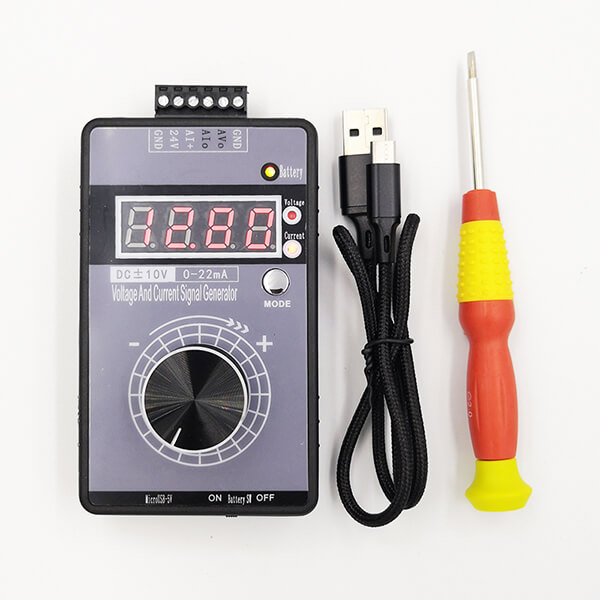

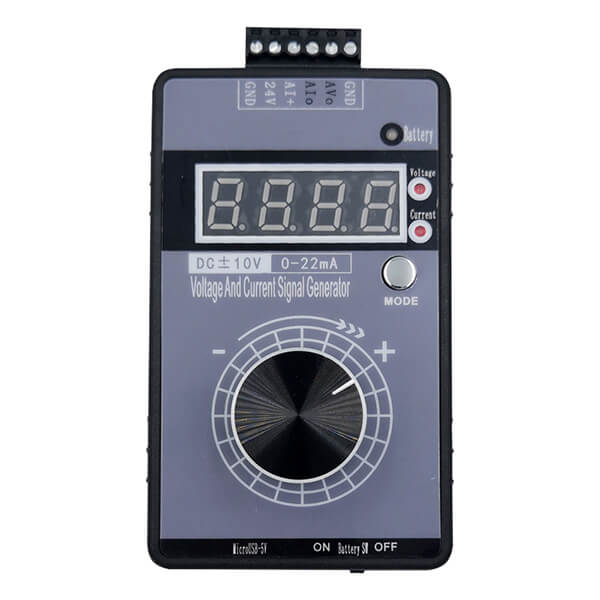

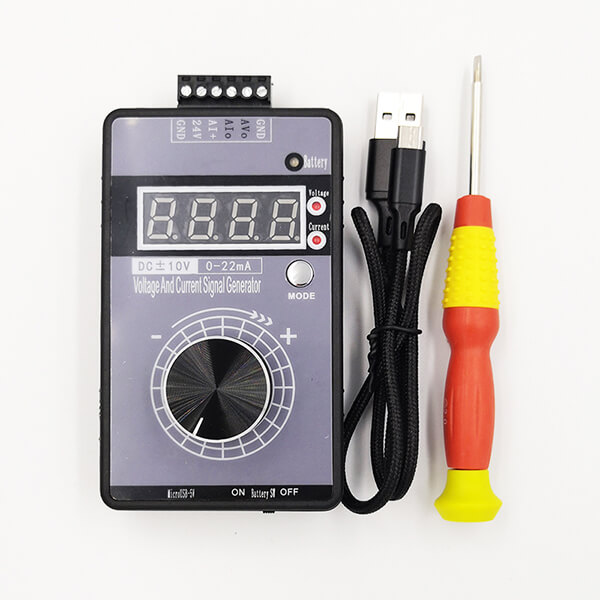

BRT LB02G Upgraded Pocket size voltage current signal generator is a precision programmable 0-22mA 0-20mA 4-20mA source meter, current loop simulator, -10V to 10V, 0-3.3V, 0-5V, 0-10V voltage signal debugging tool or controller. It has small portable case, clear LED display screen, aluminum alloy rotation knob, infinite precision encoders to adjust output signal. It supports various types of operating voltage: 15-30V external power supply via wiring terminals, 5V micro-USB power supply from power adapter, power bank, etc. Its accuracy is 2 decimal points. The current voltage generator simulator is very convenient to use in the lab or in industrial sites. It is an essential 4-20mA 0-10v signal simulator, -10V to 10V, 0-3.3V generator, 4-20ma 0-5V controller to debug valves, PLC, inverters, transmitters, PLC inputs, etc.
0-10V 4-20mA Signal generator referential operating video:
Features & Benefits
• High accuracy, 2 decimal points output, 0.01V, 0.01mA.
• 4 digits brighter LED display, accurately display output signal.
• Support external 15-30Vdc operating power supply via wiring terminals, 5V micro-USB port power supply or internal embedded battery.
• Have rough and fine adjusting modes: 0.01, 0.1, etc., changing steps are programmable.
• Current and voltage signal output simultaneously, output wiring terminals are independently.
• 2-wire, 3-wire, 4-wire active or passive current outputs, simulate 4-20mA transmitter output.
• Multiple output range: -10V to 10V, -5V to 5V, 0-3.3V, 0-5V, 1-5V, 4-20mA, 0-20mA, etc. Output range is switchable and programmable.
• Programmable multiple display modes: current voltage value display, 0-100% display, 0-50.0Hz display.
• Output terminals have short-circuited protection; power supply terminals have polarity reverse connection protection.
• Infinite rotation knob, high accuracy long life span encoder to adjust output. Much more stable and accurate than commonly used potentiometer.

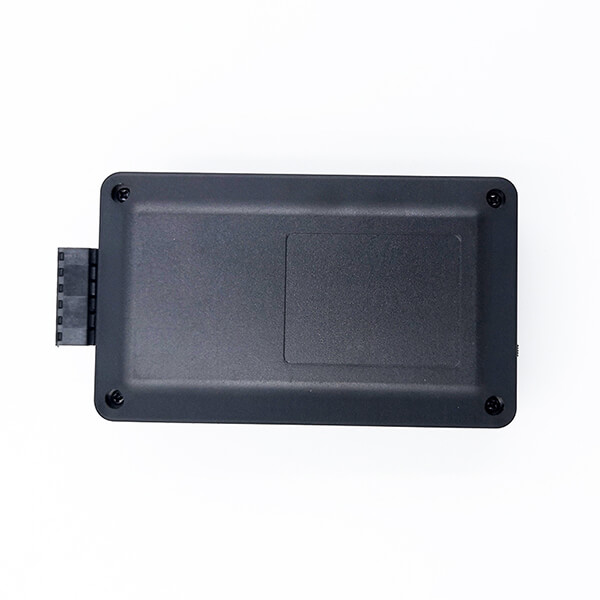

• Small size comfortable external shell: 100 x 60 x 25mm, elegant external case.
• Pluggable wiring terminal blocks, very convenient to do wire connection.
New Version Features
• Output voltage range is wider: adjustable -10V to + 10V, 0-22mA sink source signal output.
• Add fast signal output mode, more convenient to do debugging.

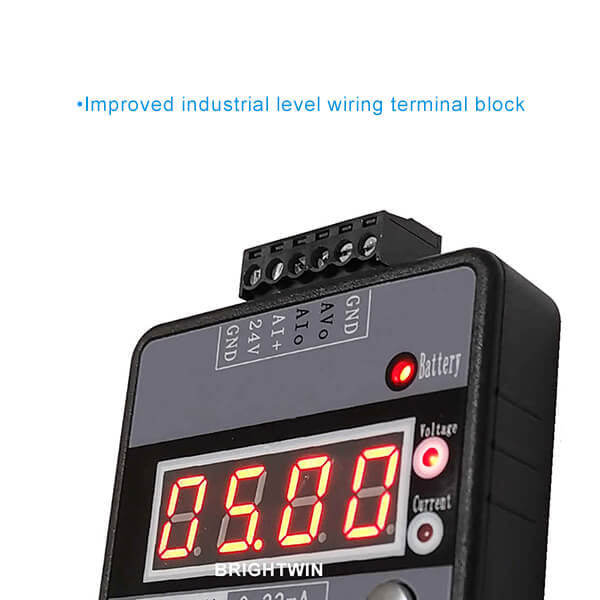

• More tough high quality wiring terminal block.

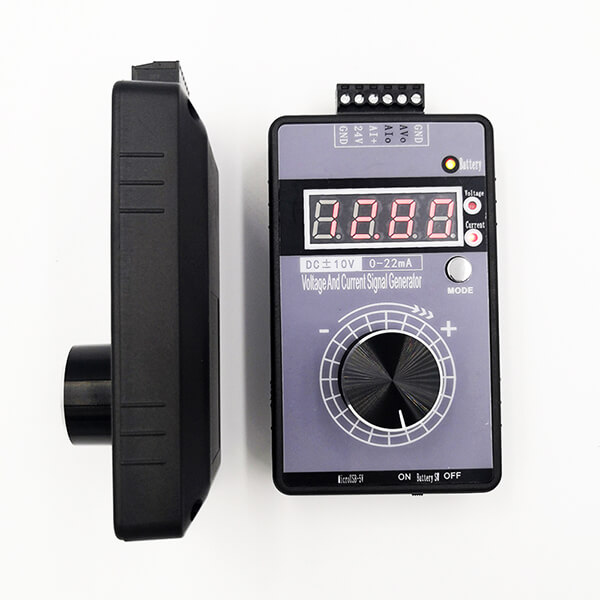

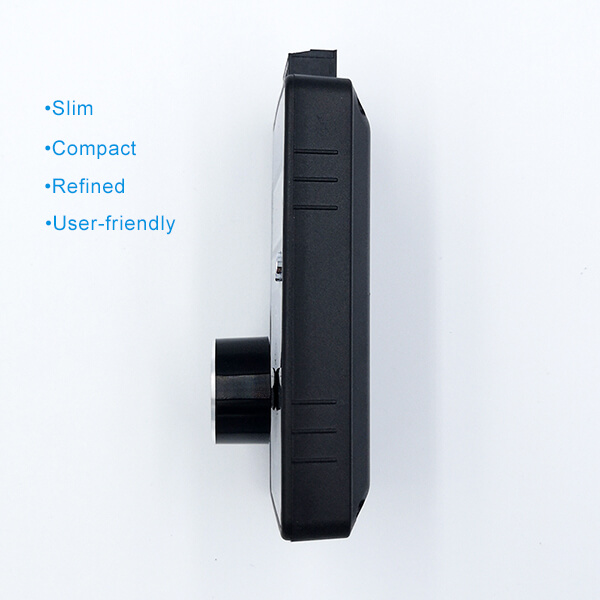

• Refined user-friendly external shell, refined knob, more slim size.
Typical Applications
• Used as 4-20mA 0-10V source meter or 2-wire 4-20mA loop tester, 4-20mA 0-10V for PLC inputs.
• 3-wire 4-wire 4-20mA signal for PLC, frequency converter, servo driver, valves calibration.
• Passive 2-wire pressure sensor, temperature sensor calibration.
• 4-20mA transmitter signal simulation and calibration.
• 0-3.3V, 0-5V, 0-10V, -10V to 10V voltage signal debugging and simulation.
Technical Parameters
| Current output range | 0-22mA, 4-20mA, 0-20mA switchable, default 0-20mA. |
| Current output accuracy | 0.05mA, can be calibrated by user, TYP. 0.1% |
| Current sampling resistance | 10-500Ω, can be short-circuit. |
| Voltage output range | -10V to 10VDC, 0-5V, 0-10V, etc. switchable, default 0-10V. |
| Voltage output accuracy | 0.03V, TYP. 0.1%, can be calibrated by user. |
| Voltage output power | max. 100mA, have short-circuit protection |
| Operating power supply | 15-30V external power supply via wiring terminals; 5V micro-USB power supply; internal battery (optional) |
| LED display | 4 digits, two decimal points |
| Display Mode | current/volt. value, 0-100%, 0-50.0Hz |
| Adjusting mode | One turn: 20 x pulses, precision encoder |
| Power consumption | External 15-30V power supply: about 1W Micro USB 5V power supply: 0.2A |
| Dimension | L x W x H: 100x60x25mm |
| Operating temperature | -20 to +50℃ |
| Storage temperature | -25 to +80℃ |
| Humidity | 80% R.O. non-condensation |
Application Circuits
Output Accuracy Testing Show (from our VIP buyers)
Parameters Programming Examples
*F001, F006 represent parameters code number.
• “F006” Precision Calibration Steps Explanation:
* When doing F006 precision calibration, please do adjust the signal generator output to 10V or 20mA firstly.
Figure 1-2: Press down and hold Knob for 2 seconds till it displays parameter code: “F001”.
Figure 2-3: “+” Clockwise rotation once, Display”- – – -“.
Figure 3-4: Input Password “+–+”, Display “= = = = (or +–+ or —- depends on presetting)”.
Figure 4-5: Press down knob, if password is correct, displays “F002”, Otherwise displays “Err” and Exit.
Figure 5-6: Rotate Knob till it displays “F006”.
Figure 6-7: Press down the knob “OK” to set the value of “F006”, and then modify the value so that the actual output signal value (measured by high precision multimeter) equals to the value displayed in LED panel (10V or 20mA). A high precision multimeter needed in that step.
Figure 7: Press down knob “OK” to Save. Otherwise, parameters will not be saved if there are no actions for more than 10 seconds.
* Its output range and display mode setting methods are the same to that steps above, please contact us to get user manual and refer to operating video above.
*How to buy it?
•A. Visa, Master, Credit card pay online directly by clicking [Add to Cart] button above and checkout accordingly (Recommended).
•B. Paypal pay online secured if you have a Paypal account, or Credit card payment processed by Paypal online directly by clicking [Add to Cart] button above.
•C. Retailer order or Wholesale Bulk order or OEM (≥5 units), please contact us to get latest wholesale price, thanks.
Download User Manual:
BRT LB02G (QH-VISG2-ED) Voltage and Current Signal Generator Manual (V2.3)
