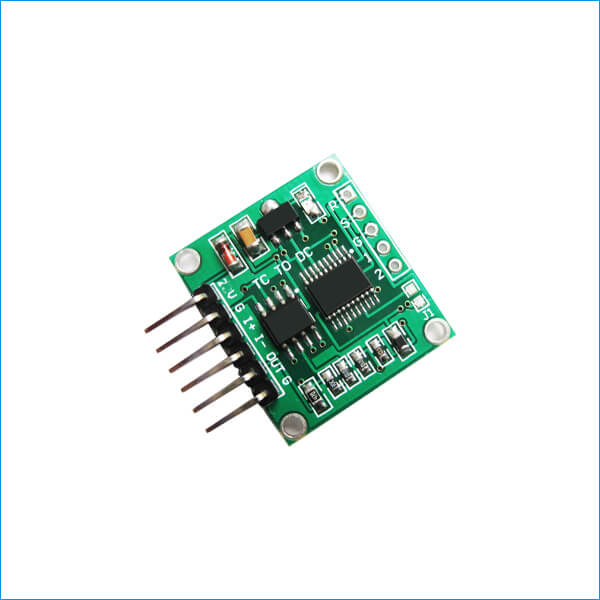

K Type Thermocouple to 0-5V 10V Converter

Original price was: $14.87.Current price is: $13.35.

BRT TCK-V K-type thermocouple to voltage module is a low cost type-k thermocouple to 0-5v 0-10v linear conversion circuit with cold-junction compensation. It accepts k-type thermocouple input (-100-+1100℃) and converts it into standard voltage signal output. With wide power supply range 9-24VDC, small size, it is very easy to do integration for K- type TC to DC signal conversion or further development.

Description

BRT TCK-V K Type thermocouple to 0-5V 0-10V signal converter module is designed to converts type K thermocouple sensor signal (-100℃ to +1100℃ ) into 0-5V or 0-10V standard voltage signal. Its output voltage signal can be switched through the soldering pads. Very convenient to use in temperature signal controlling applications.

Main Features
•Low cost, small size, easy to do further integration.
•High efficiency, high accuracy linear conversion.
•K-type: -100-+1100℃ input, with cold-junction compensation.
•Standard 0-5VDC or 0-10VDC signal output.
•Wide range 9-24VDC power supply.
•Size: 26x23x10mm (L x W x T)
•Industrial temperature range: -20-+85℃.

Typical Applications
•K type thermocouple to 0-5V/0-10V signal conversion.
•Temperature signal long-distance transmission.
•Remote temperature signal data acquisition.
•Industrial equipment temperature signal control.
•Meter and instruments, chemical and oil-mining equipment signal monitoring, etc.

Technical Parameters

TermsTYP. Value
Power supply9-24VDC, 20mA (*output 0-10VDC, power supply must be ≥ 15VDC.)
InputK type thermocouple: -100-+1100℃
Input measuring temperature range-100-+1100℃
Output0-5VDC (default output); wielding pad J1 is in open-circuit
0-10VDC; If 0-10V output is required, please short-circuit J1 wielding pad.
AccuracyOutput 0-5VDC: 0.0041666V/℃
Output 0-10VDC: 0.0083333V/℃
Storage Temp.-45-+90℃, No condensation.
Operating Temp.-20-+85℃, No condensation.
DimensionL x W x H: 26x23x10mm  Pin spacing: 2.54mm

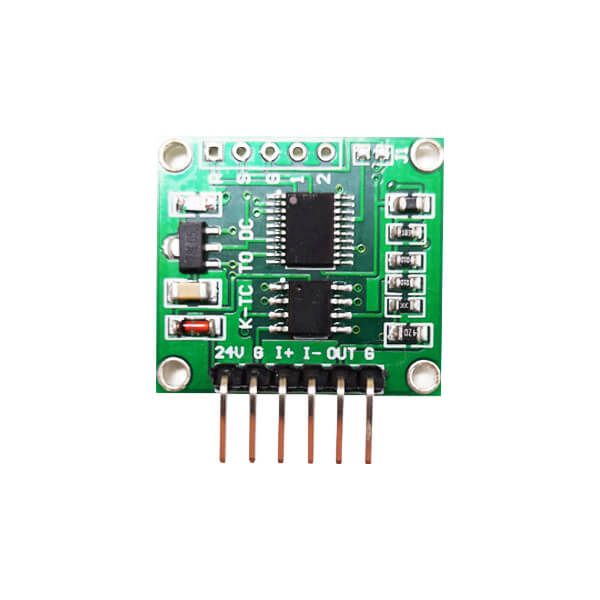

Pin Definition

Pin Code24VG     I+      I- OUT G
DefinitionPower supply + (9-24VDC)Power supply TC K input +TC K input Signal outputGND-

*K Type Thermocouple to 0-5V 0-10V Converter Temperature Measured Calculation Formula:

(Output voltage V/Accuracy) -100℃ = Temperature measured value (℃)

Additional information

Weight0.02 kg
Dimensions2.6 × 2.3 × 1.0 cm
Input

K-type Thermocouple: -100-+1100℃ range

Output

0-5VDC or 0-10VDC( please short-circuit J1 wielding pad)

Power Supply

9-24VDC (*If output is 0-10VDC, the power supply must be higher than 15VDC.)

Packing List

1 Unit x Original K Type Thermocouple to 0-5V 10V Converter Module
1 Set x Professional user manual
