10K NTC to 0-5v converter
10K NTC to dc converter
100K NTC to 0-10V 0-5V Signal Converter
100K NTC to voltage module

NTC Thermistor to Voltage NTC to 0-10V 0-5V Signal Converter

$12.49

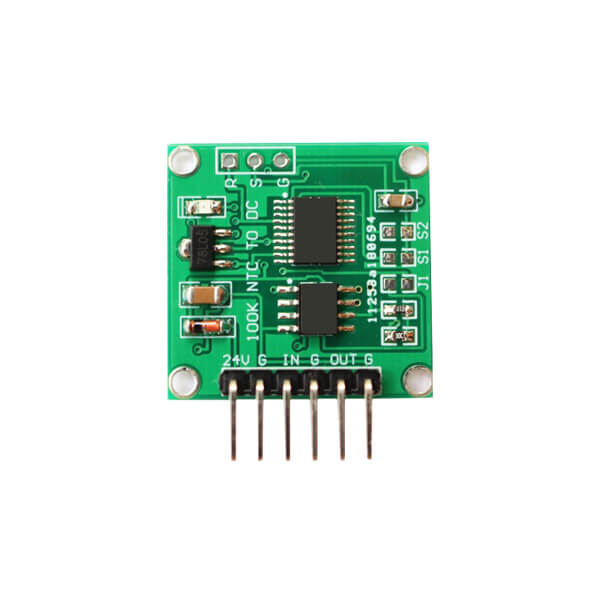

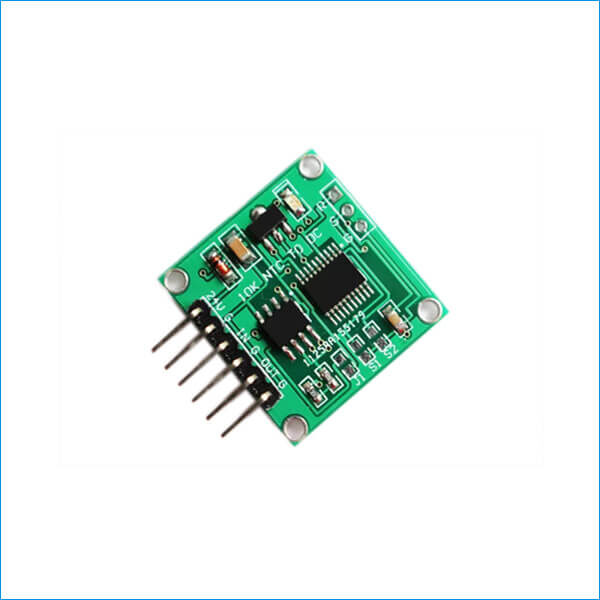

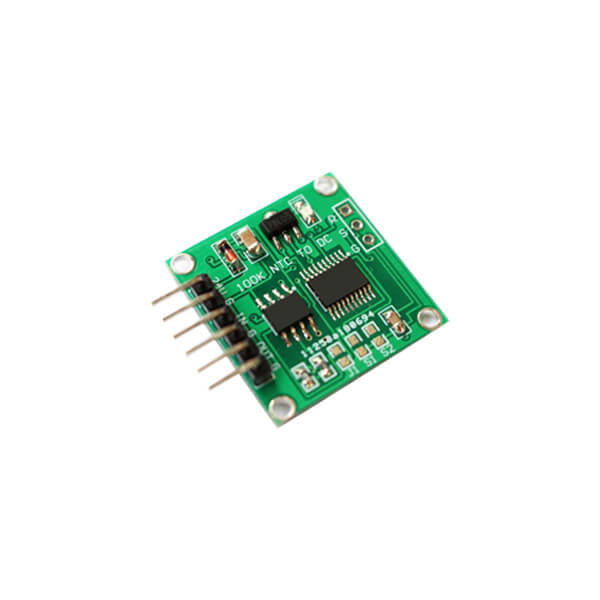

BRT NTC-V NTC Thermistor to voltage signal converter accepts 10K B3435K or 100K B3950 NTC signal input and converts it into 0-5V or 0-10V signal in linearity. The NTC thermistor signal is processed by internal modulation circuit to output temperature (voltage) signal. It is in small size, low cost, easy-to-use, and provides a simplified solution in temperature measuring applications.

SKU: BRT NTC-V Category:

Description

BRT NTC-V NTC Thermistor to voltage signal converter is a low cost high linear 100K NTC or 10K NTC to 0-10V or 0-5V signal conversion module. It converts NTC temperature signal input in proportional to voltage signal output. 6 pins PCB-mount module, 9-24V wide range power supply, easy to do further integration.

Main Features
•Small size, low cost, integrated circuit.
•High accuracy, high efficiency, linear conversion
•NTC 10K/100K Thermistor signal input, temperature range:10K(B3435K): -40 to +150℃ or 100K(B3950): -20 to +150℃.
•Standard 0-5V or 0-10VDC output.
•9-24VDC wide range power supply.
•Industrial operating temperature range: -20-+65℃.

Typical Applications
•10K or 100K NTC Thermistor to voltage signal conversion and transmission.
•Temperature monitoring and controlling in industrial site.
•Data acquisition and remote control.
•Industrial meters and instruments integration.
•Temperature sensor or meters signal output monitoring.

NTC Thermistor to Voltage Converter Parameters

TermsDescription
Operating voltage:9-24VDC (15-24VDC @ 0-10V output)
Input:NTC 10K (B value: 3435K), NTC 100K (B value: 3950) Thermistor
Input temperature
measuring range:		-40-+150℃ (10K), -20-+150℃ (100K)
Output:0-5VDC (default output); wielding pad S2 is in open-circuit
0-10VDC; If 0-10V output is required, please short-circuit S2 soldering pad.
Accuracy:Output 0-5VDC: 0.0263157V/℃ (10K NTC); 0.0294117V/℃ (100K NTC)
Output 0-10VDC: 0.0526315V/℃ (10K NTC); 0.0588235V/℃ (100K NTC)
Storage temp.:-45-+90℃, no condensation
Operating temp.:-25-+80℃, no condensation
Dimension:L x W x H: 26x23x10mm, Pin spacing: 2.54mm

Pin Definition

Pin Code24VGINGOUTG
DefinitionPower supply +
9-24VDC		Power supply – GNDNTC input +NTC input –Signal outputGND-

•NTC Thermistor to 0-10V 0-5V Signal Converter Module Temperature Measured Calculation Formula

10K (B3435K) NTC input: (Output voltage V/Accuracy) -40℃ = Temperature measured value (℃)

100K (B3950) NTC input: (Output voltage V/Accuracy) -20℃ = Temperature measured value (℃)

Additional information

Weight0.01 kg
Dimensions2.6 × 2.3 × 1.0 cm
Input

NTC 10K Thermistor: -40-+150℃, NTC 100K Thermistor: -20-+150℃

Output

0-5VDC (default output);
0-10VDC; If 0-10V output is required, please short-circuit S2 wielding pad.

Packing List

1 Unit x Original NTC Thermistor to Voltage 10k NTC to 0-10V 0-5V Linearity Converter
1 Set x Professional user manual (English version)
