NTC Thermistor to Voltage Signal Converter DIN Rail-mount

$18.95 – $30.85

BRT NTC-VD DIN Rail-mounted 10K 100K NTC signal to dc signal converter module can converts 2-channel NTC thermistor temperature signal into 0-5V or 0-10V signal in high linearity in proportional. 12-24V wide range operating power supply, standard rail-mounted shell, ideal to use in industrial applications.

SKU: BRT NTC-VD Category:

Description

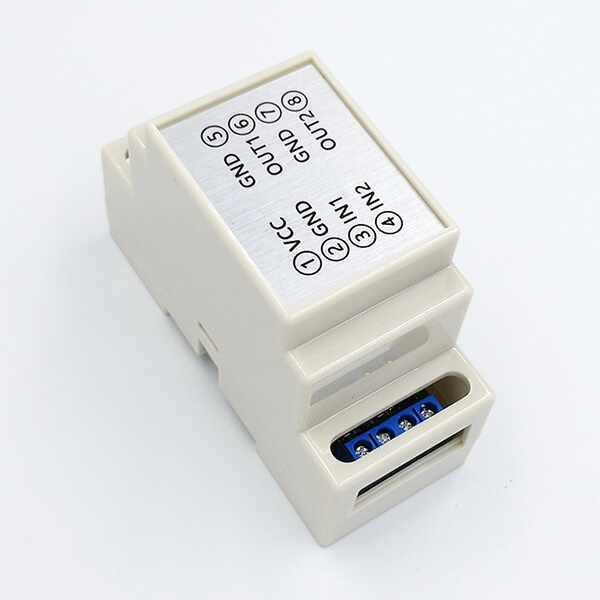

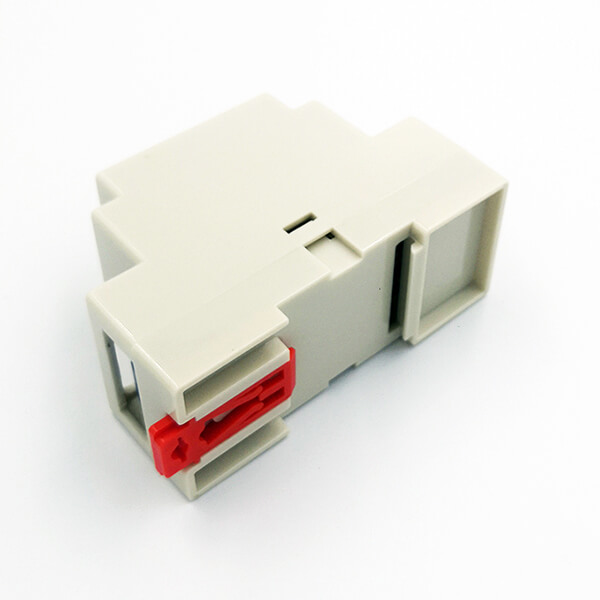

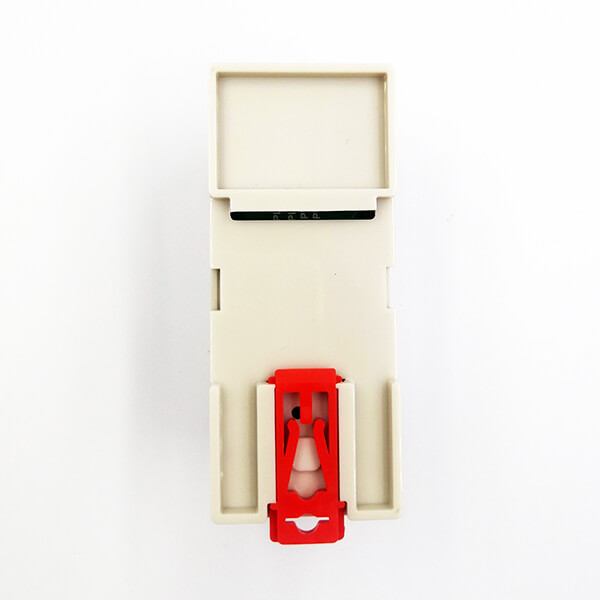

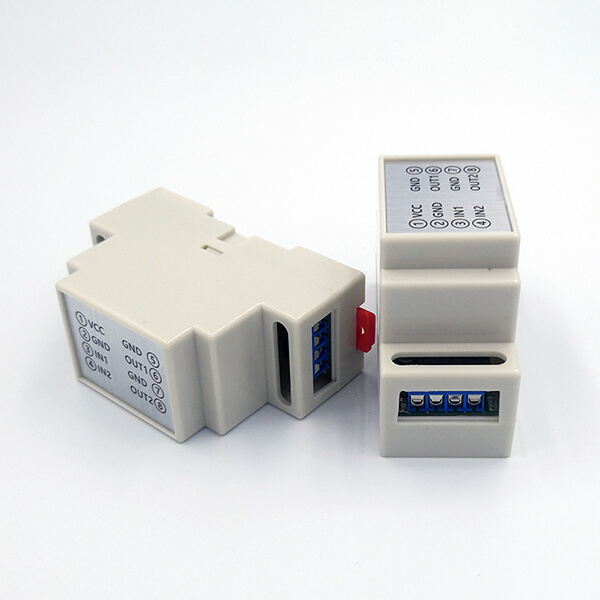

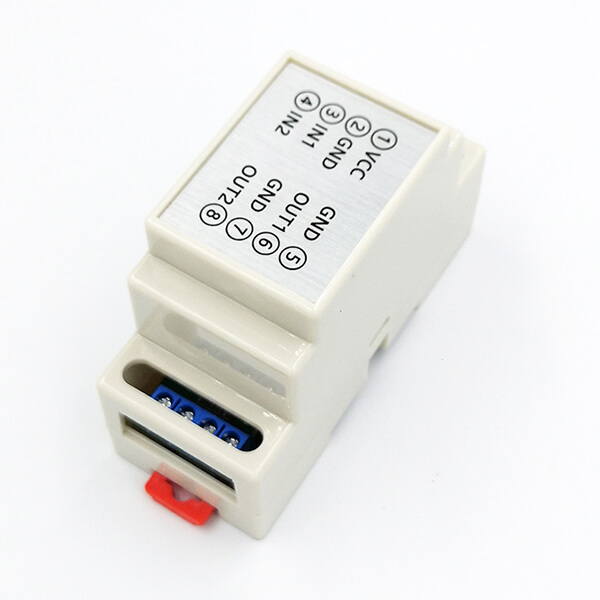

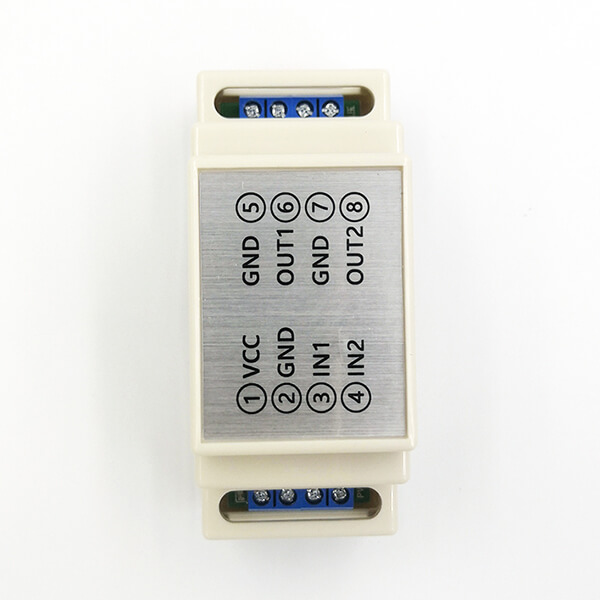

BRT NTC-VD DIN Rail-mounted 10K 100K NTC to voltage signal converter is a NTC thermistor sensor signal to DC 0-10V or 0-5V voltage signal linear conversion module. Its operating power supply is 12-24VDC, 2-channel signal independent signal input to output conversion. Its input signal can be 10K NTC or 100K NTC sensor signal, input temperature range to output voltage signal is in high linear conversion. This NTC thermistor to voltage converter is very convenient to install in the cabinet.

Technical Parameters

Input10K NTC, 100K NTC signal (optional); * (Customized input sensor type is available.)
Output0-10V, 0-5V, 4-20mA, 0-20mA (optional)
Power supply input12V-24VDC
Accuracy0.2% F.S.
Input/output No2 x channels independent signal input to output.
Isolation1.5KV isolation between input and output, non-isolation between input and power supply terminal.

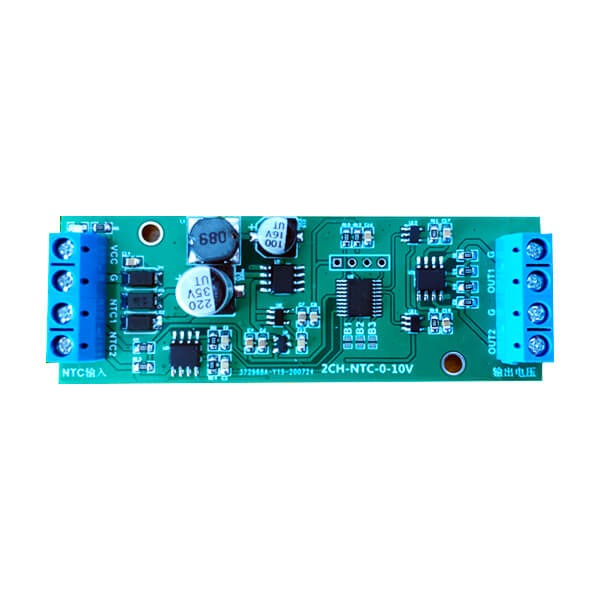

PCB size80x28mm (L x W)
DIN Rail Case Size88x37x59 mm (L x W x H)

* Input 10K NTC or 100K NTC thermistor temperature range: 0-100℃. Refer to NTC resistance table below. If user needs other temperature ranges or special NTC sensors, please contact us when placing orders, thanks.

*If needs other temperature ranges, other outputs, other sensors input, please do contact us firstly.

10K 100K NTC (0-100℃) Thermistor Resistance Table

B3435 10K NTC Thermistor Resistance Table
B3435 10K NTC Thermistor Resistance Table
B3950 10K NTC Thermistor Resistance Table
B3950 10K NTC Thermistor Resistance Table
B3950 100K NTC Thermistor Resistance Table
B3950 100K NTC Thermistor Resistance Table

*If the NTC thermistor B value/temperature range required is not listed, pls contact us to get details. Customized 10K 100K NTC to 0-10V 0-10V voltage signal converter is available.

Additional information

Weight0.17 kg
Dimensions8.8 × 5.7 × 3.9 cm
Input

10K NTC (B3435: 0 to 100 °C), 10K NTC (B3950: 0 to 100 °C), 100K NTC (B3950: 0 to 100 °C), 10K NTC (B3435: -40 to 125 °C), 10K NTC (B3435: -50 to 50 °C), RS Pro NTC Probe 10K (B3435), 10K NTC (B3435: -40 to 100 °C), 10K NTC (B3435: -50 to 120°C)

Output

0-10V, 0-5V, 4-20mA

Operating power supply

12V / 24VDC

Highlights

2-channel NTC input, 2-channel voltage signal output, independently input -output.

Accuracy

0.2% F.S. high linear conversion.

Packing list

1 x Original DIN Rail-mount NTC Thermistor to Voltage Signal Converter
1 x User Manual (English)
