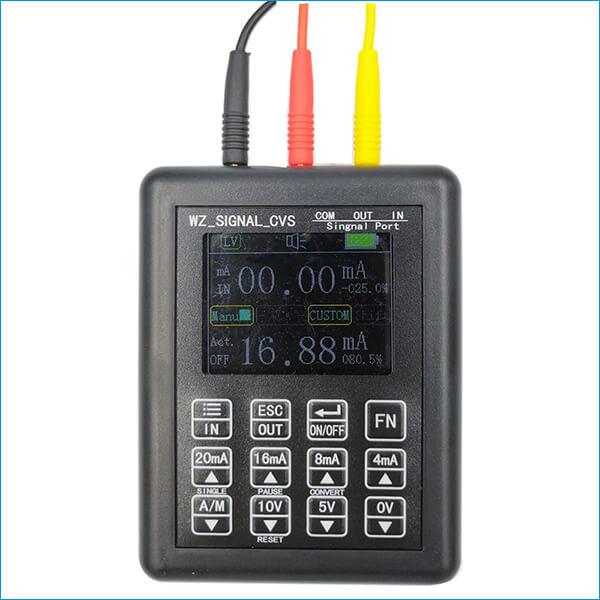

BRT LB03 WZ-SIGNAL-CVS Analog multifunction signal generator has both 0-5V 0-10V 0-24mA 4-20mA signal simulator loop signal generator function and 0-24mA 0-30V current voltage signal measuring meter function. Its max. output range: 0-24mA sink or source signal, 0-12V voltage signal, and max. measuring range: 0-24mA, 0-30V. It has clear color LCD screen to display input and output signal in one interface or in upper lower dual interface. The signal generator meter has fast output mode, manual or automatic output mode, curves output, customized output mode, etc. Its basic accuracy is 0.25% TYP. With simple button layout, small portable shell, precision display, it is an ideal simple V mA signal calibration meter in industrial site.
Main Features
●Pocket size: 90 x 70 x 28mm, very easy to carry, save cost.
●Have 4-20mA, 0-5V, 0-10V, 0-20mA signal output and measurement function.
●Accurate 0-24mA active or passive signal, 0-12V, 24V output.
●Accurate 0-24mA 0-30V input measurement function.
●Basic 0.25% F.S. ±2 digits accuracy grade. 0.01mA, 0.01V accurate output and input measurement function.
●Large clear color LCD display input and output signal accurately, support dual task display mode.
●2000mAH large capacity rechargeable battery inside, can be used in the lab or in industrial site.
●Have one button fast output, automatic ascending, descending and cycling output mode.

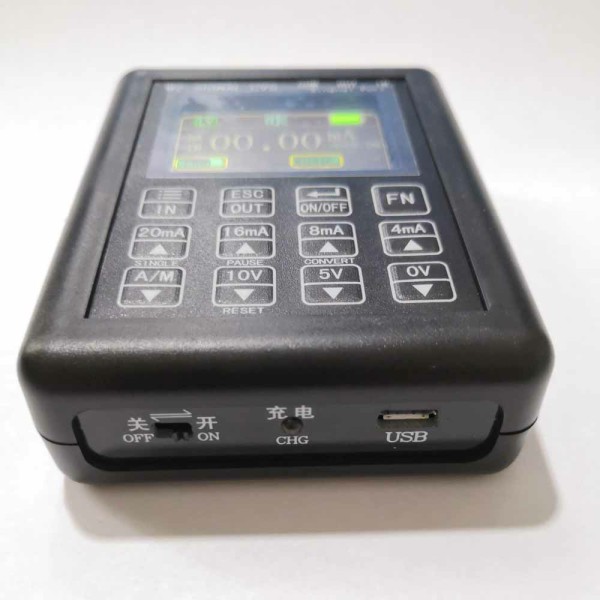

●Micro USB port for power supply and battery recharging.
●Have polarity reverse connection and over-current protection, protection voltage is 30V.
●Have current to voltage signal conversion or voltage to current signal conversion function.
●Customized min. output value and max. output value are settable.
●Widely used as 24v 0-5v 0-10V 0-20mA signal generator, simple mA V calibrator, 0-20mA 0-10V 0-5V measuring meter.
Technical Parameters
| Active current source output: | 4-20mA typical. Max. 0-24mA, accuracy 0.01mA, max. load 750 Ω. |
| Sink passive current output: | 4-20mA typical; Max. 0-24mA, accuracy 0.01mA, external power supply max. 30V |
| Voltage signal output: | 0-5V/10V typical; Max. 0-12V, accuracy 0.01V |
| 24V output: | Driving current is 24mA, have current loop display. |
| Current signal Measurement: | 0-24mA, accuracy 0.01mA |
| Voltage signal measurement: | 0-30V, accuracy 0.01V |
| Display mode: | Color LCD display. can display input, output signal in one or dual interfaces. |
| Output mode: | Automatic / Manual output: ascending, descending, cycling mode. |
| Input to output switching: | Can be voltage to current source mode, sink mode, current to voltage mode switching, one button fast output. |
| Additional output function: | Customized output, user can set any min. output value and max. output value; current voltage signal conversion. |
| Language: | English default. |
| Protection Circuit: | Polarity reverse connection protection, over current protection, protection voltage 30V. |
| Battery: | 2000mAH large capacity rechargeable Li battery. |
| Battery durability: | 6 hours operating time at 20mA output. |
| Port: | Micro USB port for power supply and battery recharging. |
| Operating Temperature: | 0-50℃ |
| Size: | 90 x 70 x 28mm |
Referential Wiring Circuits

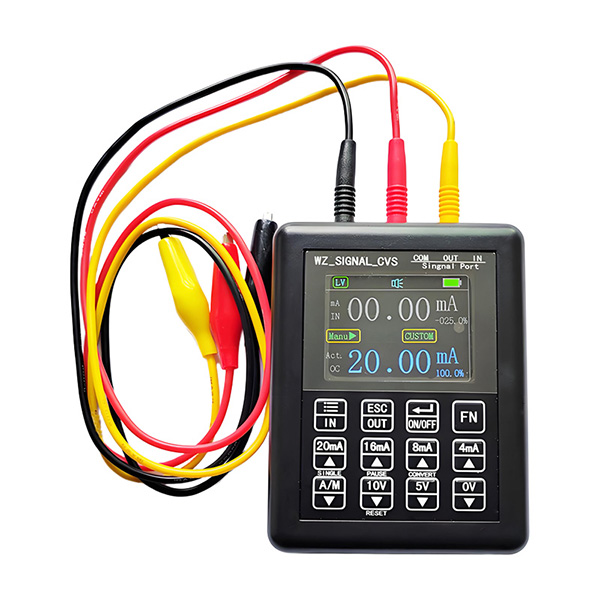

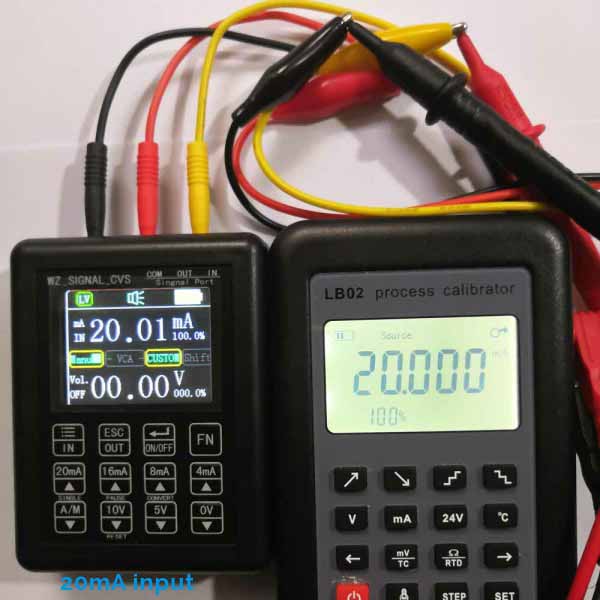

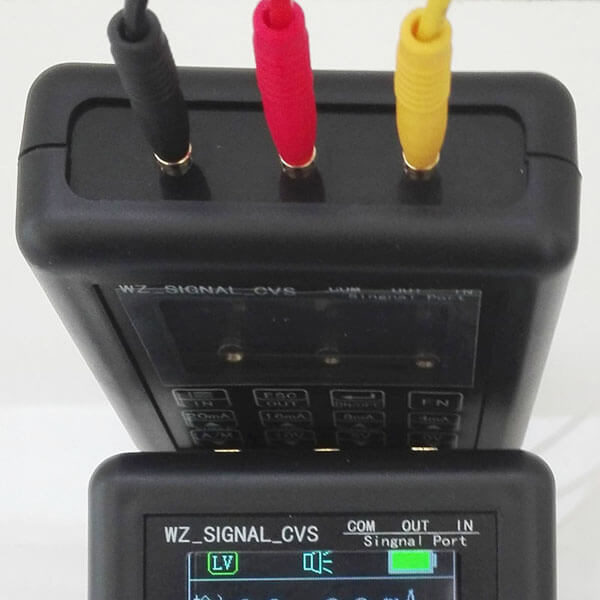

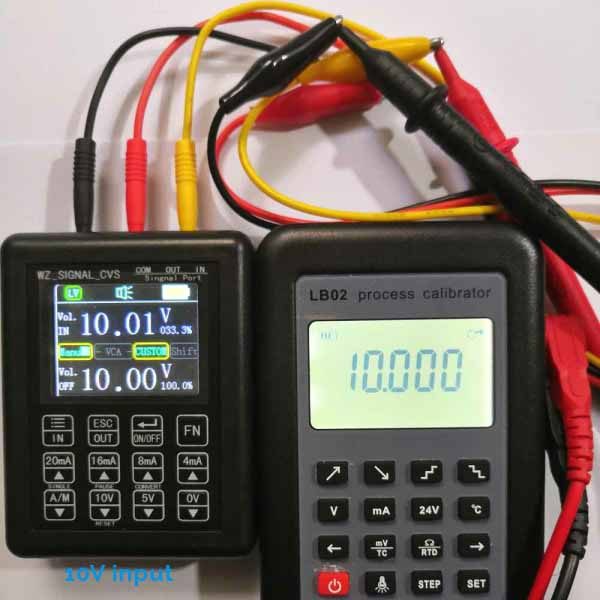

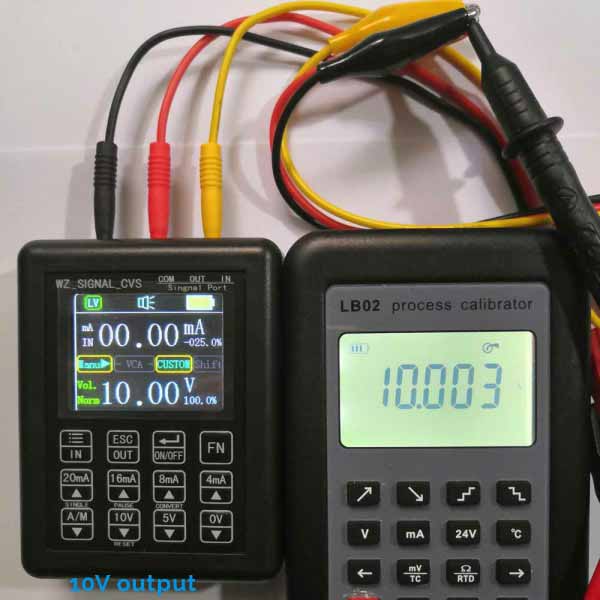

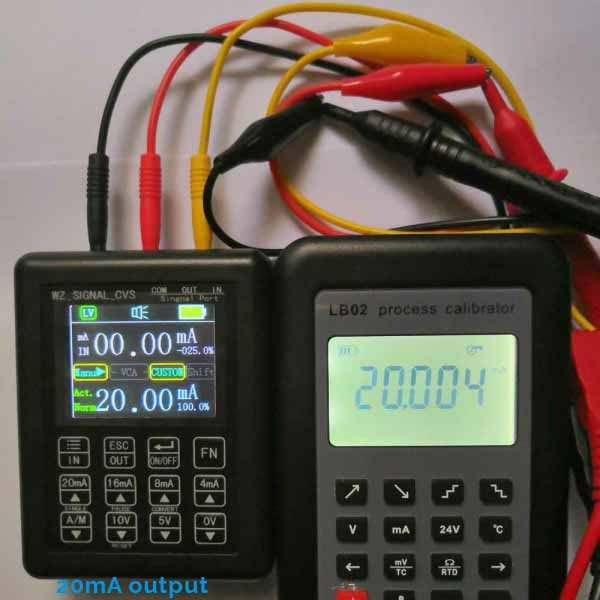

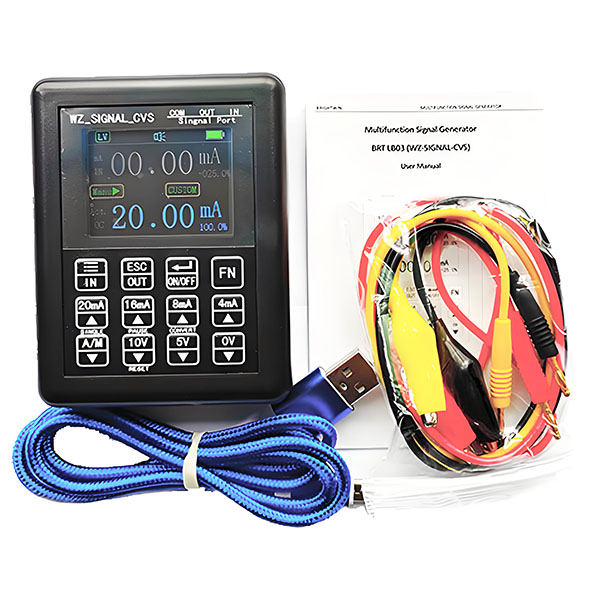

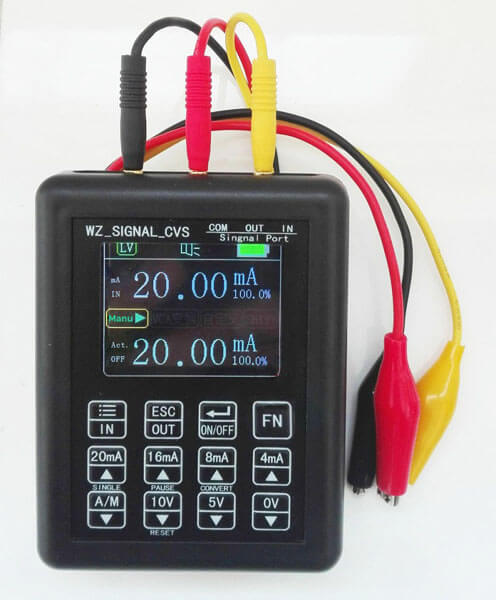

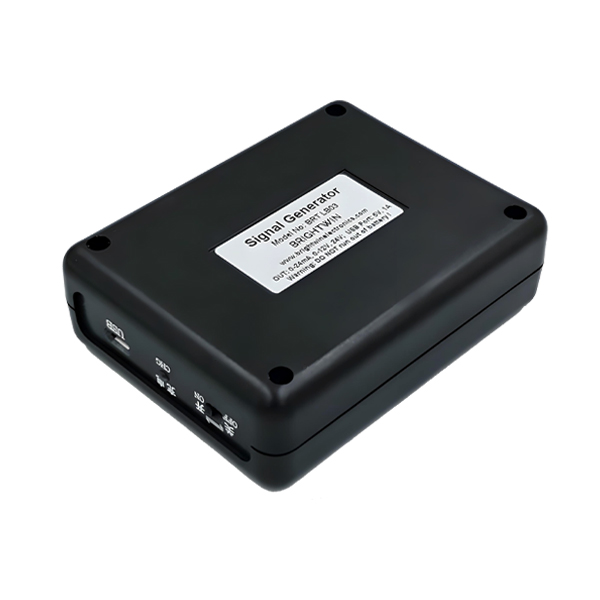

Signal Generator Show:
