Description
BRT HU520 Temperature mV thermocouple generator simulator module is a type of mV small signal, type K, type N thermocouple signal simulation circuits module. It is a reliable thermocouple signal simulator calibrator for meters, PLC, DCS signal debugging, testing, and a perfect thermocouple signal simulation meter.
Technical Parameters
| Output | Output Range | Accuracy |
| Voltage output | -10mV– +110mV | 0.01mV |
| Voltage output | -100mV– +1100mV | 0.1mV |
| Type K thermocouple | -200– +1370℃ | 0.1℃ |
| Type N thermocouple | -200– 1300℃ | 0.1℃ |
| General Parameters | ||
| Power supply | 7-12VDC | |
| Operating current | ＜50mA | |
| Size (L x W x H) | 57 x 48 x 20mm | |
Connection Interface
P1: Power supply interface
VDD: 7-12VDC power supply +
GND: Power supply –
P2: Output signal interface
CH1: Signal channel#1: output -10mV– +110mV / Type K: -200～+1370 ℃ output +
CH2: Signal channel#2: output -100mV– +1100mV / Type N: -200～+1300℃ output +
GND: Signal output GND –
Operating Instructions
>> Buttons description
UP: LCD Previous Page Display
DWON: LCD Next Page Display
ADD: Plus Key
SUB: Subtract Key
FUN: Select/Set data operation mode(Long hold to set or switch signal into ON/OFF).

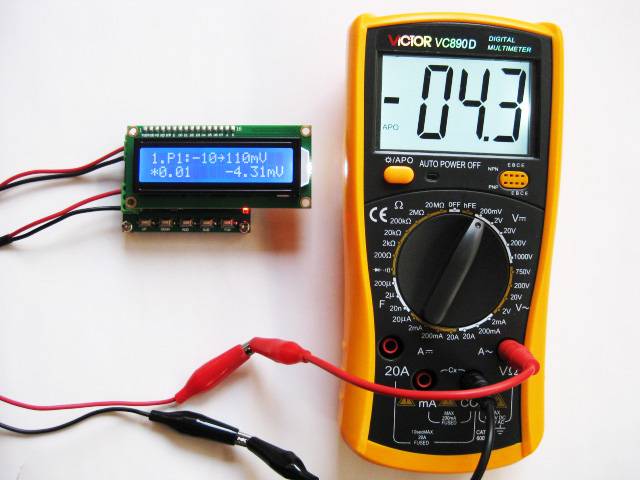

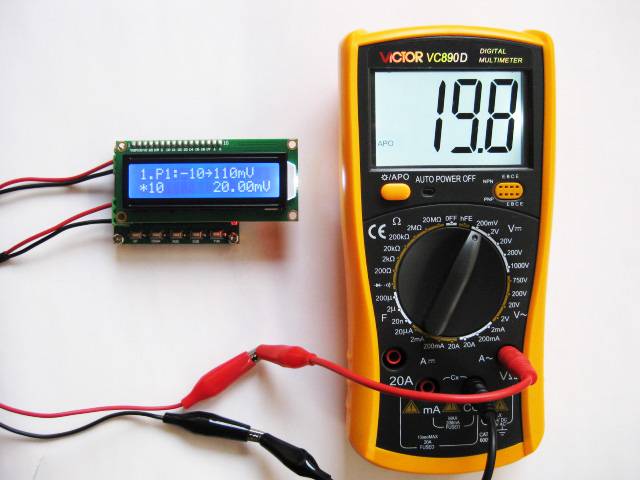

>> -10mV to +110mV Voltage Simulation
LCD Display Interface
First Line: “1. P1:-10mV~+110mV ”
Second Line: ” *0.01 0.00mV ”
Terminal Code CH1: Output -10mV~+110mV
Button Operation:
FUN: Select/Set data operation mode(Long hold to set or switch signal into ON/OFF).

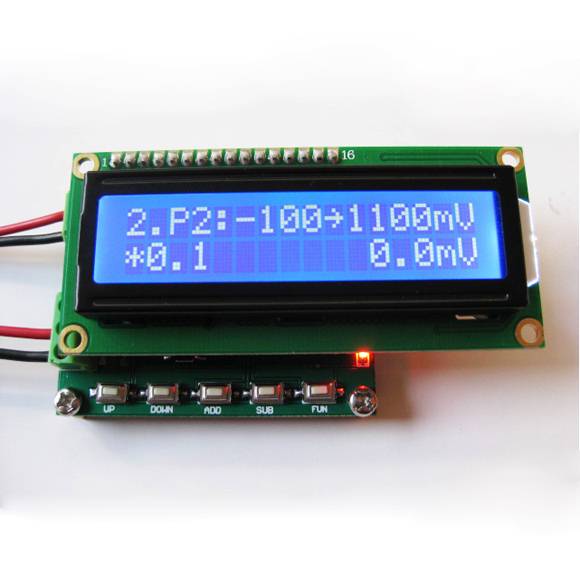

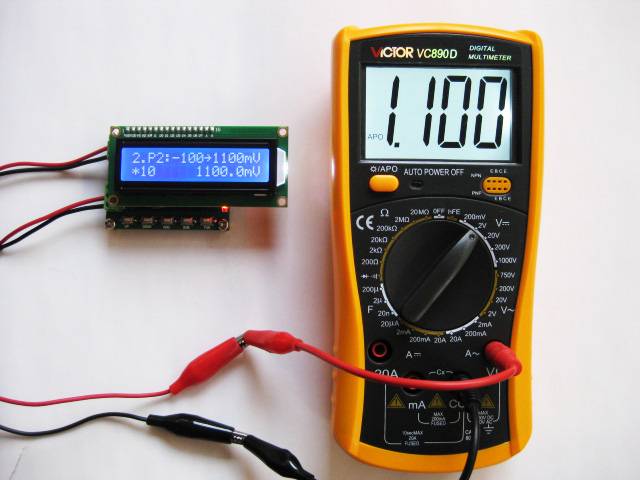

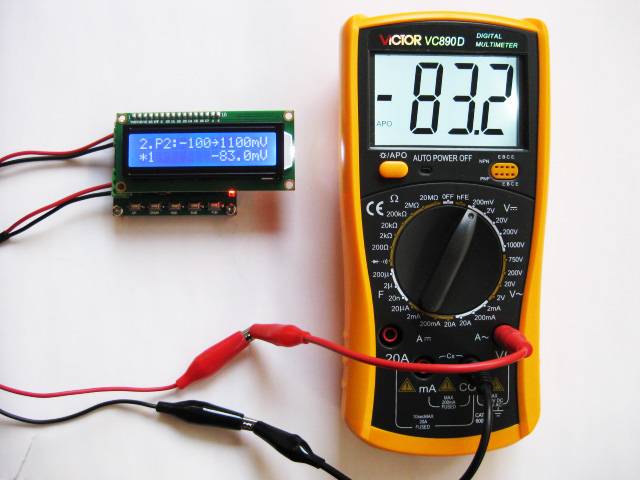

>> -100mV to +1100mV Voltage Simulation
LCD Display Interface
First Line: “2. P2:-100mV~+1100mV ”
Second Line: ” *0.1 0.0mV ”
Terminal Code CH2: Output -100mV~+1100mV
Button Operation:
FUN: Select/Set data operation mode(Long hold to set or switch signal into ON/OFF).

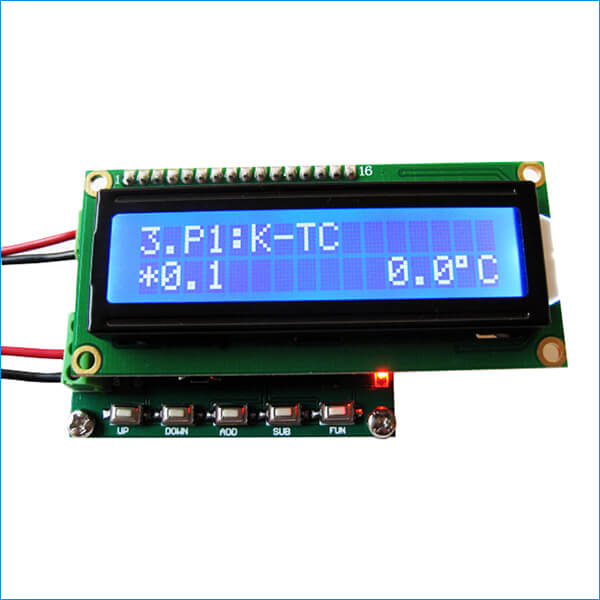

>> Type K Thermocouple Signal Simulation
LCD Display Interface
First Line: ” 3.P1:K-TC ”
Second Line: ” *0.1 0.0’C ”
Terminal Code CH1: Simulation output type K thermocouple -200～+1370℃+
Button Operation:
FUN: Select/Set data operation mode(Long hold to set or switch signal into ON/OFF).

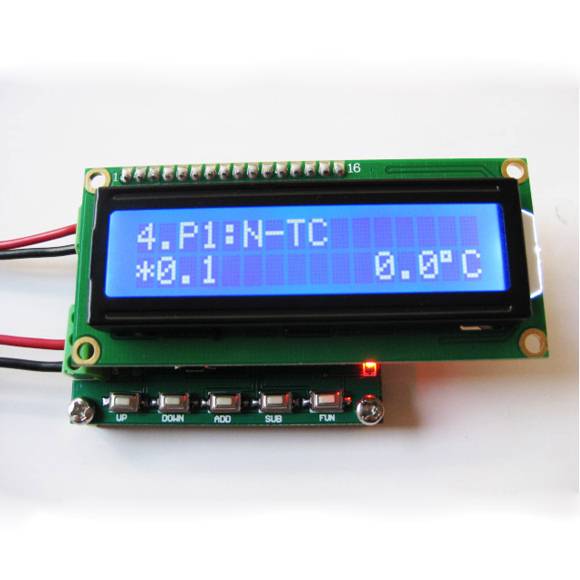

>> Type N Thermocouple Signal Simulation
LCD Display Interface
First Line: ” 4.P1:N-TC ”
Second Line: ” *0.1 0.0’C ”
Terminal Code CH2: Simulation output type N thermocouple -200～+1300℃+
Button Operation:
FUN: Select/Set data operation mode(Long hold to set or switch signal into ON/OFF).
*More details about type N K thermocouple generator simulator, please contact us.
