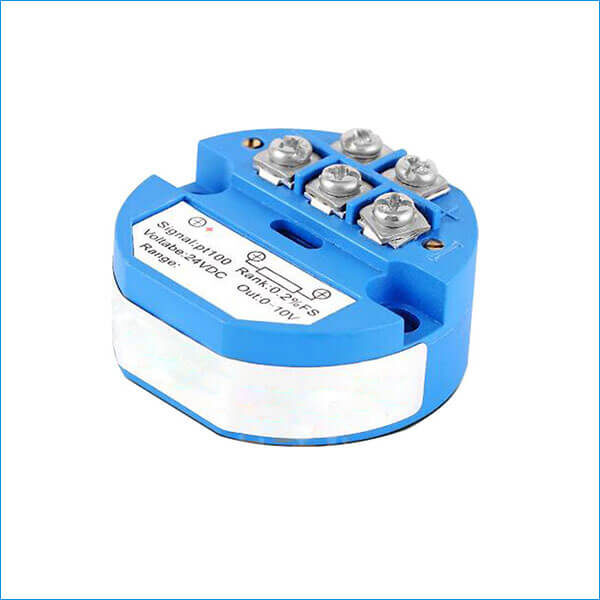

Thermocouple Input Temperature Transmitter Head-mounted

$11.98$16.12

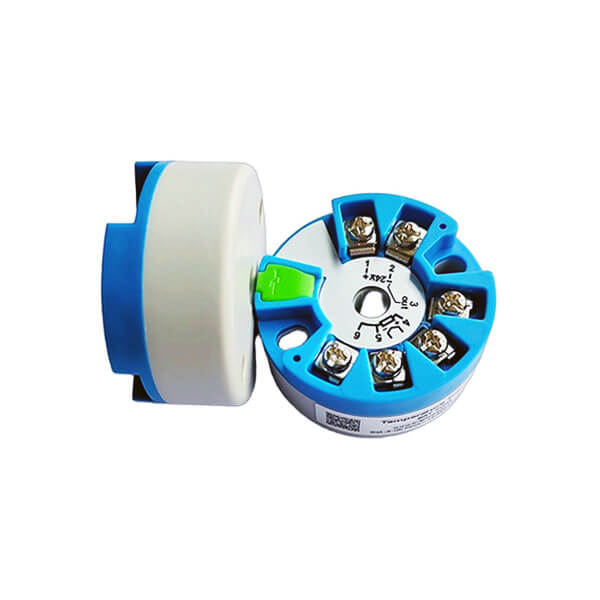

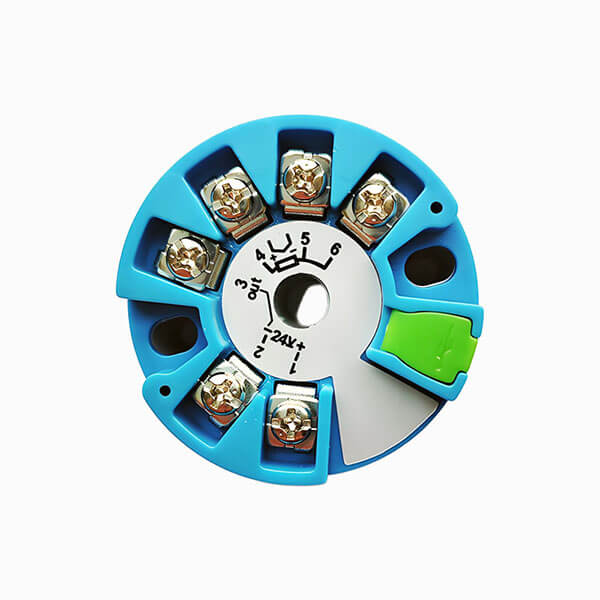

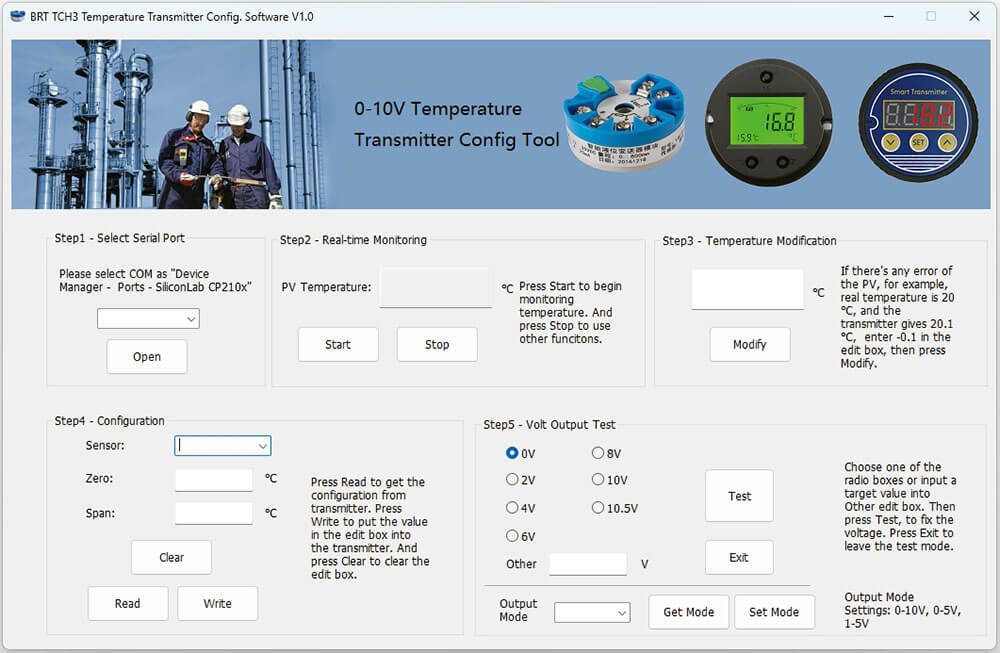

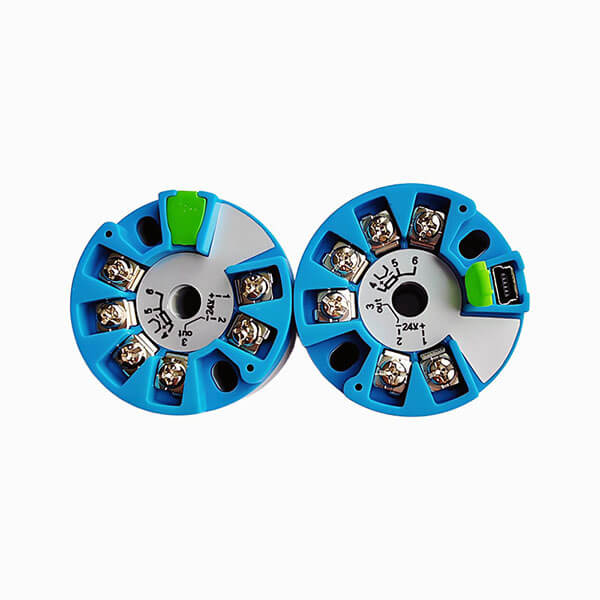

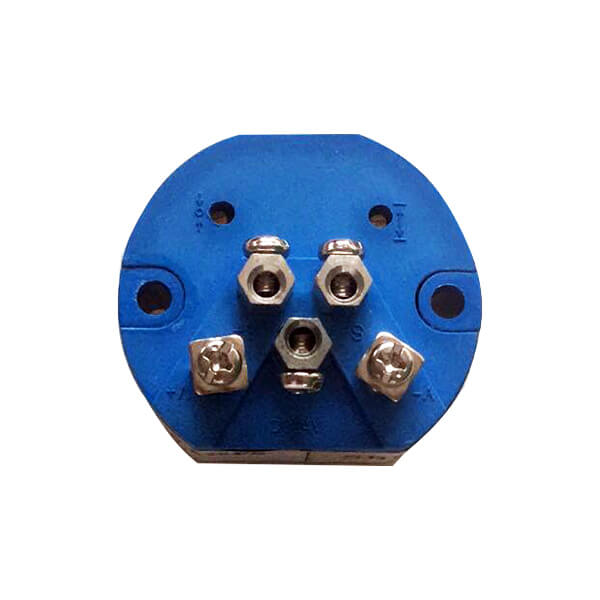

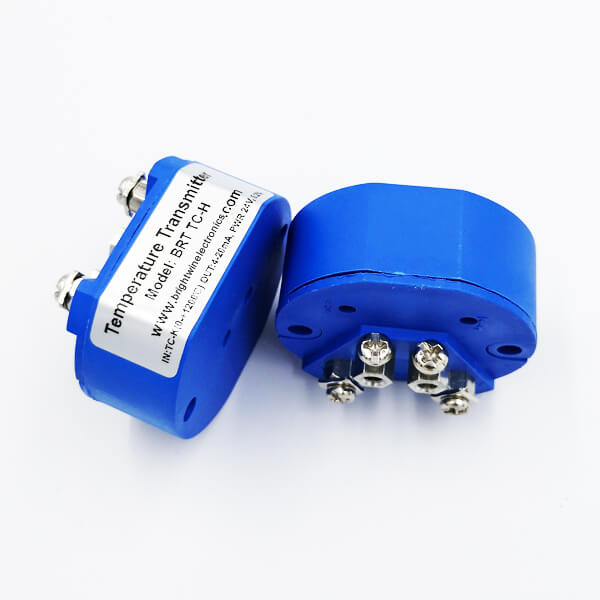

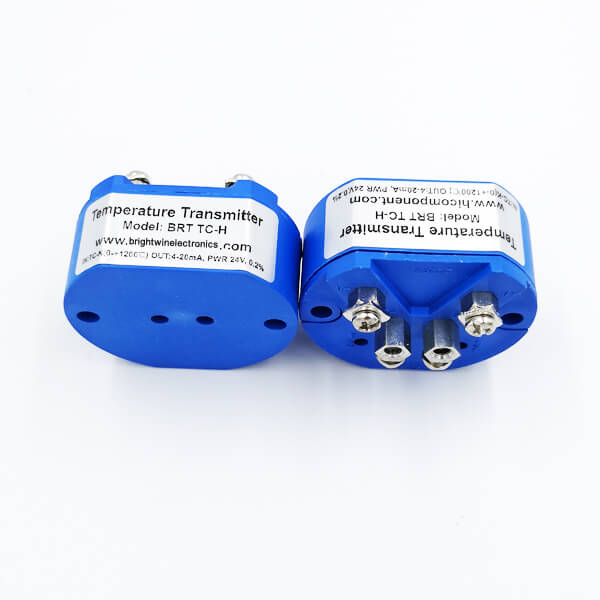

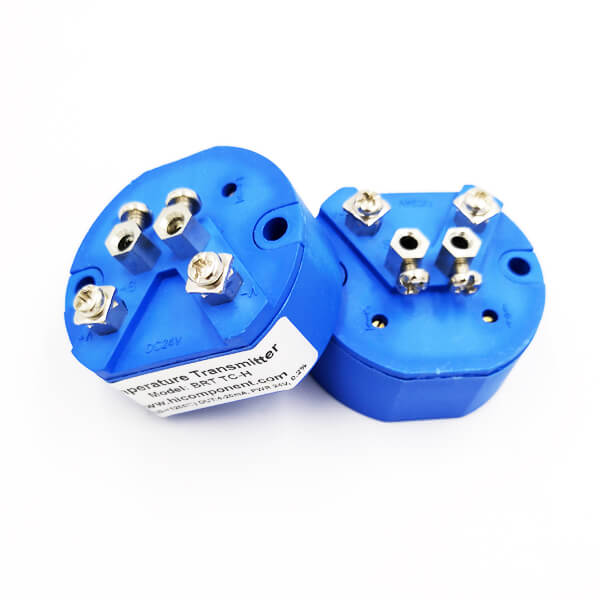

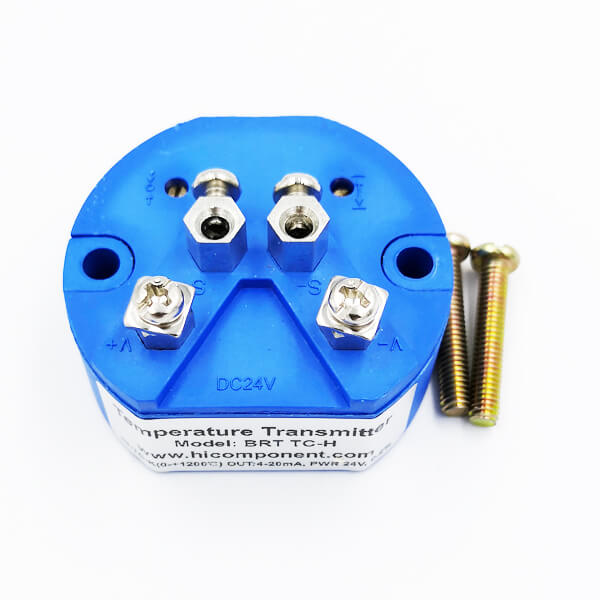

BRT TC-H Thermocouple temperature transmitter is a high efficiency standard head mounted thermocouple to 4-20mA signal converter module with cold junction compensation. This temperature transmitter operates in 2-wire loop powered mode and gets power from 4-20mA current loop output. It accepts K-type, PT100 temperature sensor signal input, and converts the input thermocouple into 4-20mA or 0-5V, 0-10V. The temperature transmitter can be embedded into temperature sensors, wiring terminal box or used as a conversion module in meters and instruments. The internal components are sealed by Epoxy Resin, special design techniques used to ensure it can operate well in severe environments, vibration conditions.

Discount per Quantity

QuantityDiscountPrice
5 - 105%$11.38$15.31
11 - 5011%$10.66$14.35

Description

BRT TC-H Head-mounted temperature transmitter is designed to convert thermocouple sensor K signal into 0-5V 0-10V 4-20mA output in linearity. It works in 2-wire output mode. Standard head-mounting shell, widely used in temperature signal measurement and data acquisition in industrial field.

Main Features
•Typical ±0.5% F.S. accuracy
•No adjustment is required, convenient to use.
•2-wire 4-20mA output loop powered conversion, or 0-5V, 0-10V output.
•Internal automatic cold junction compensation, not linear calibration circuit.
•K-type thermocouple signal, optional 2/3-wire PT100 sensor signal, etc., customized input is available.
•Have Zero, span adjusting potentiometer to ensure high stability.
•Standard head mounted flame-retardant package.
•Operating temperature range -20-+70℃.

Typical Applications
•Thermocouple signal data acquisition in industrial site.
•Thermocouple temperature signal conversion and transmission.
•Thermocouple sensor signal monitoring and controlling.
•Embedded into temperature meters and instruments.

Technical Parameters

Input terminal
Input SignalK-type thermocouple signal, 2/3-wire PT100 (optional), etc.
Cold junction compensationautomatic cold junction compensation, ±1℃ (0-50℃)
Output terminal
Output signal4-20mA loop or 0-5V/0-10V voltage
Load capacityRL≤500Ω
General parameters
Power supplyNone, loop powered
Accuracy0.5 F.S.
Temperature drift0.005% F.S./℃ (-20-+60℃)
Response time≤1S (0-90%) TYP
IsolationNon-isolation between input and output
Installation packagestandard head-mounted, flame-retardant shell
Operating temp. range-20-+70℃
Storage temp. range-45-+90℃ non-condensation
EMC CompatibilityIn compliance with GB/T 18268 (IEC61326-1)

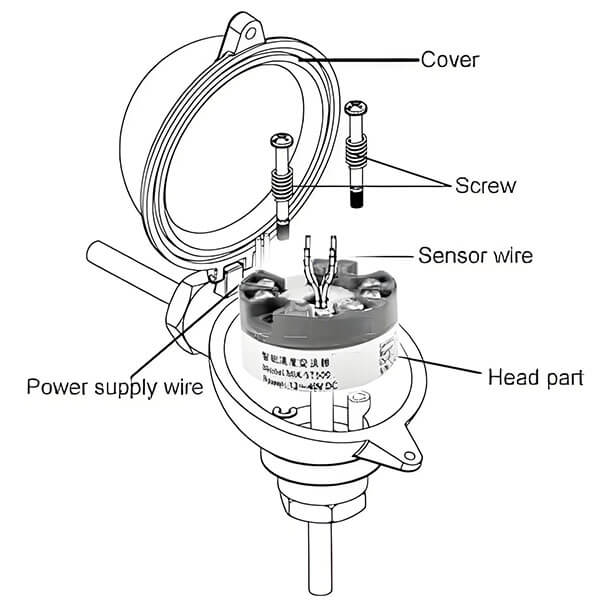

Wiring Circuit & Dimension

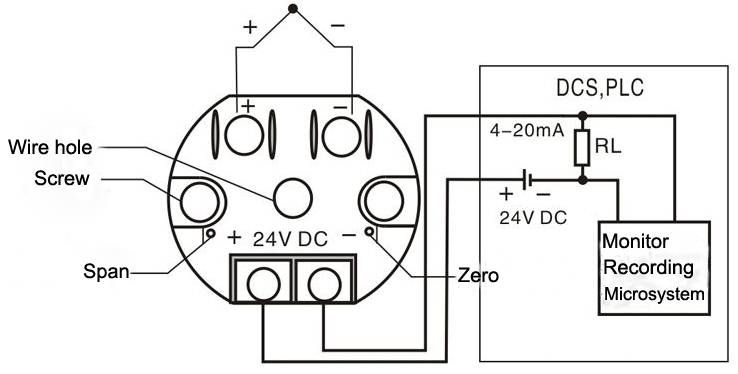

Thermocouple to 4-20mA Output Coverter Wiring Circuit
Thermocouple to 4-20mA output wiring circuit

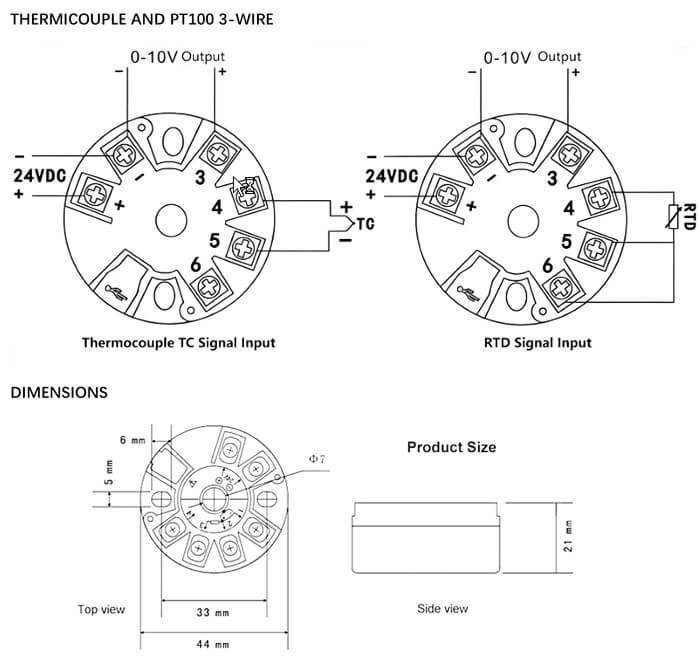

Thermocouple temperature transmitter 0-5V 0-10V output wiring
Thermocouple to 0-5V 0-10V output wiring

*If need other temperature ranges or other sensor signal input, please notify us temperature range you want when placing orders, thanks.

*If need PT100 Temperature Transmitter, pls visit (click): PT100 to 0-5V 0-10V Temperature Transmitter

Additional information

Weight0.12 kg
Dimensions3.6 × 4.4 × 2.1 cm
Input

Type-K(0-1200℃), Type-K(0-1300℃), PT100 (0-100℃), Type-K(0-1000℃), Type-K(0-400℃), Type-K(0-600℃), Type-K(0-800℃)

Output

4-20mA, 0-5V, 0-10V

Other Temp. Ranges

Customized thermocouple or PT100 input temperature transmitters are available. If other thermocouples or temperature ranges required, please contact us by email. Or order it via: https://www.hicomponent.com/pt100-to-0-4-20mA-converter-rtd-transmitter.html
