Isolated Thermocouple to Analog Converter

$32.66

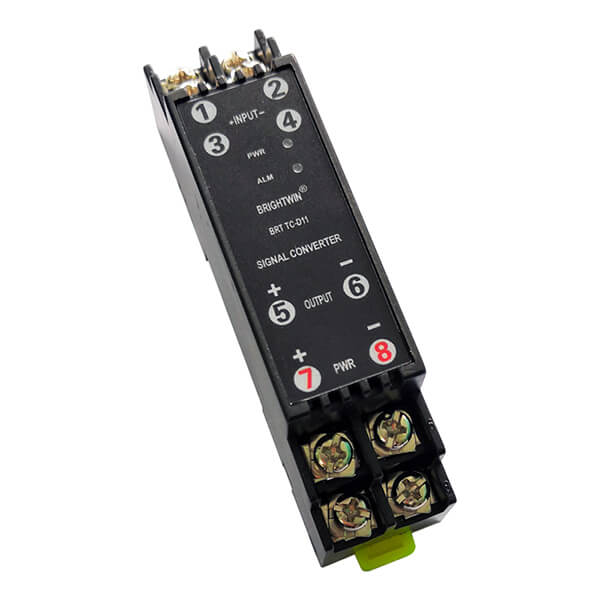

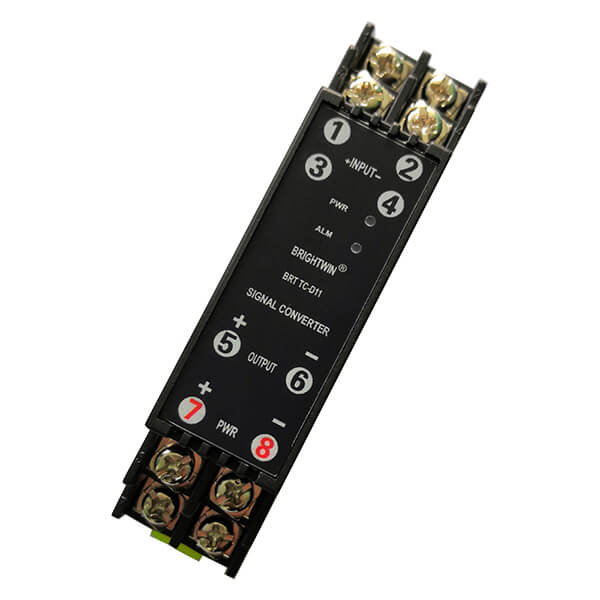

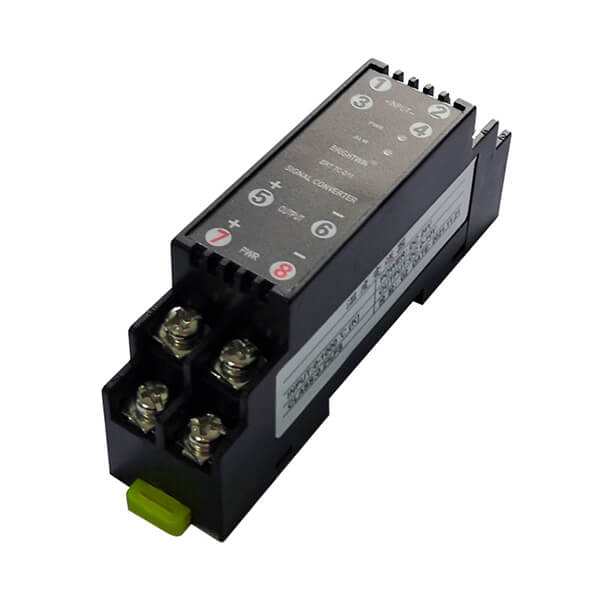

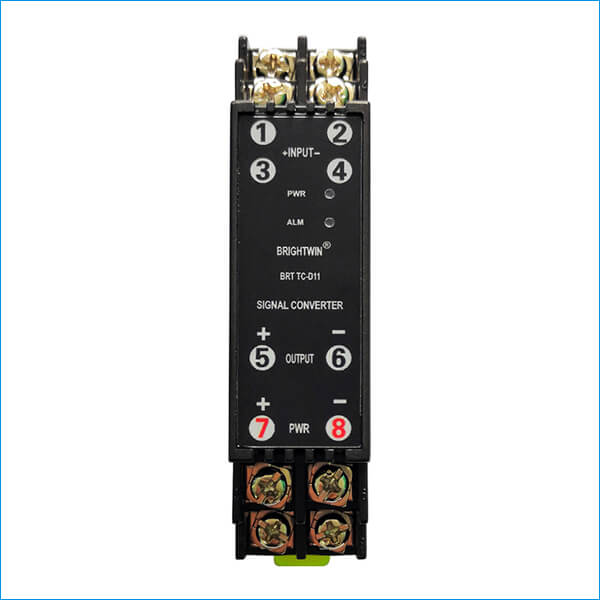

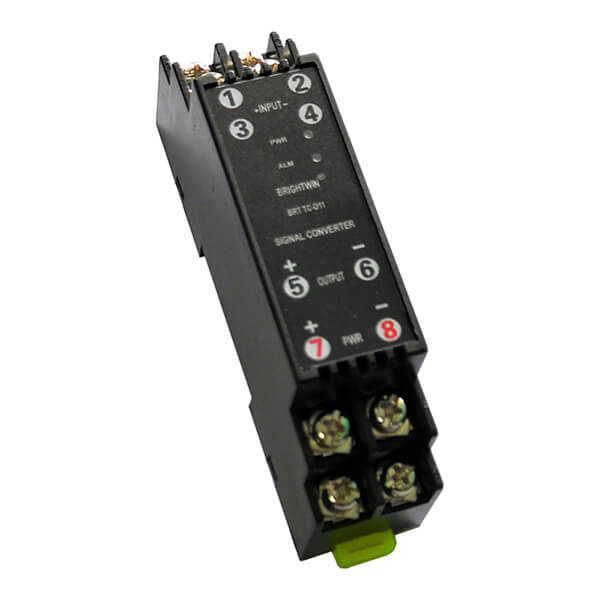

BRT TC-DB11 Isolated thermocouple to analog converter is a reliable DIN rail-mounted thermocouple TC signal to dc current voltage signal conditioning and isolated conversion module. Its available input can be thermocouple type K, J, T, S, E, etc., output is standard 4-20mA, 0-5V, 0-10V, etc., 12V or 24V power supply. Its input, output, power supply terminals are in 1.5KV 3-way isolation.

Description

BRT TC-DB11 Series Isolated thermocouple to analog current voltage signal converter is designed to deal with the temperature change measured by thermocouple (TC) through the processing circuits into a standard voltage or current signal after signal amplification. Its output signal can be used for digital temperature instrumentation recorder, analog regulator, PID, DCS system, and widely used in industrial processes detection and controlling system. BRT TC-DB11 thermocouple to analog converter can withstand 1.5kV impulse voltage among input, output, power supply, its performance is much higher than other similar TC signal converters and provides reliable high-performance solution for customers.

Main Features
• Standard 24VDC (±10% range) or 12V (optional) operating power supply.
• High reliability, accuracy: 0.2%, 0.5% F.S.
• Have cold-junction compensation circuit inside.
• Have power supply status, TC alarm indicators.
• 1500VDC 3-way isolation among input, output, power supply.

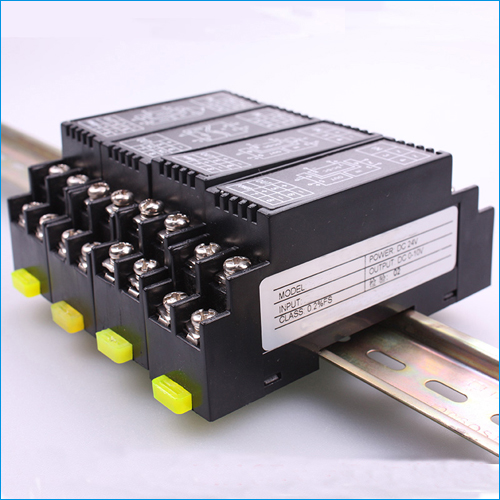

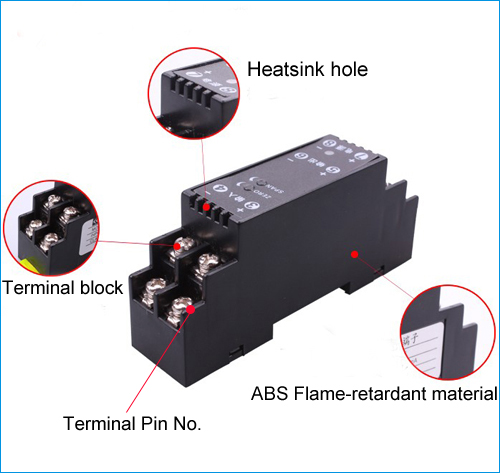

• Flame-retardant package, 35mm DIN rail-mounting case.
• EMC compatibility: in compliance with IEC61326-1.
• Operating temperature range: -20-+65℃.

Technical Parameters

Input signalB, E, J, K, N, R, S, T type thermocouple signal (optional)
Cold-junction
compensation
Compensation range: -25-+75℃ (1℃error per 20℃)
Compensation mode: internal embedded.
Output signal0-5VDC, 0-10VDC, 0-20mADC, 4-20mADC, etc.
Output load capacityRL≤500Ω when output is current signal
RL≥10KΩ when output is voltage signal
Power supplyDC24V, ±10%
Response timeabout 500mSecs.
Current consumption≤70mA (24V power supply, 20mA output)
Accuracy0.5% F.S.  less than 200mSecs response time
Temperature drift0.005% F.S./℃ (-20-+65℃)
Isolation voltage1500VAC/1min, among input, output, power supply
Insulation resistance≥100MΩ among input, output, power supply
Operating temperature-20 – +65℃
EMC CompatibilityIEC61326-1

Isolated Thermocouple Signal Converter Wiring Circuit

 Thermocouple to Analog Converter
Thermocouple to analog converter wiring

*If the temperature range wanted is not listed, please choose “No Matched Temp. Range” and tell us your temp. range by email.

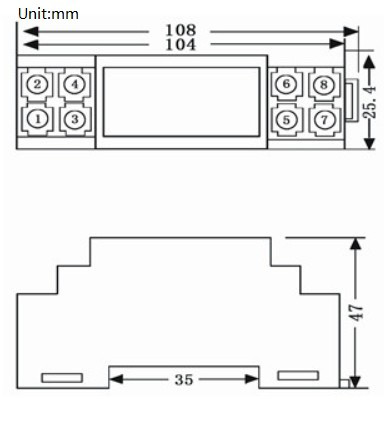

Dimension

"<yoastmark

Additional information

Weight0.1 kg
Dimensions10.8 × 4.7 × 2.54 cm
Accuracy

0.2% F.S.

INPUT TC

Type-K, Type-J, Type-T, Type-E, Type-S

INPUT TEMP. RANGE

0-300℃, 0-400℃, 0-600℃, 0-1200℃, 0-1300℃, 0-1000℃, -300 to +300℃, No Matched Temp. Range

OUTPUT

4-20mA, 0-5VDC, 0-10VDC, 0-20mA

POWER SUPPLY

24VDC

IMPORTANT NOTE

Other measuring temperature ranges are required, please contact us online or via send email to tell us your temperature range value. Thanks.
